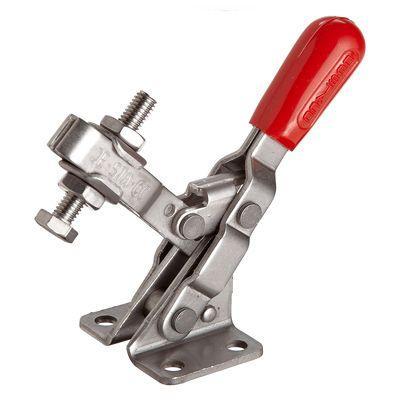

Destaco 201-USS | Vertical Hold-Down Toggle Locking Clamp Stainless Steel
Product Details
In Stock: 12
Couldn't load pickup availability
Description
201-USS Vertical Locking Clamp
Smallest vertical handle hold-down range
Maximum Holding Capacity (N): 560
Maximum Holding Capacity (lbsf): 125
Clamp Arm Length (mm): 25.9
Clamp Arm Length (in): 1.020
Height Under Clamp Arm (mm): 15.7
Height Under Clamp Arm (in): 0.620
Clamp Bar Opening (+10°) (degrees): 100
Handle Opening (+10°): 55
Available: Yes
Standard Material: Stainless Steel
Toggle Lock Plus: No
Accommodates Workpiece Variation: No
Base Mounting Style: Flange
Clamp Arm Style: U-Bar
Handle: Vertical
Service Environment: Normal
Duty Cycle: 1
Product Type: Stainless Steel
Weight: 0.70kg [0.15lbs]Â
Handle Moves: 60°
Bar Opens: 110°
Additional Notes:
U-bar clamping arm supplied with stainless steel hex head spindle
Application: Welding: Poor/Low, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Not Recommended, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium
Specifications
Handle :
VerticalDuty Cycle :
1Weight (lb) :
1.54Product Type :
Vertical Hold-Down ClampsPublishedDate :
1674671986000Product Series :
201Clamp Arm Style :
U-BarFlanged Washers :
102911DistributorGroup :
Workholding (Manual, Power and Hydraulic Clamps)Product Function :
ClampingSpindle Assembly :
201943Toggle Lock Plus :
NoStandard Material :
Stainless SteelBase Mounting Style :
FlangeService Environment :
NormalApplication - Welding :
Poor/LowClamp Arm Length (in) :
1.02Application - Assembly :
Excellent/HighApplication - Closures :
Excellent/HighHandle Opening (+10°) :
55.0Application - Machining :
Not RecommendedApplication - Wood-Working :
Excellent/HighHeight Under Clamp Arm (in) :
0.62Application - Food Processing :
Fair/MediumMaximum Holding Capacity (lbf) :
125.0Accomodates Workpiece Variation :
NoApplication - Checking Fixtures :
Excellent/HighClamp Bar Opening (+10°) (degrees) :
100.0Downloads
