Destaco 2017-UR | Horizontal Hold-Down Toggle Locking Clamp
Product Details
In Stock: 23
Couldn't load pickup availability
Description

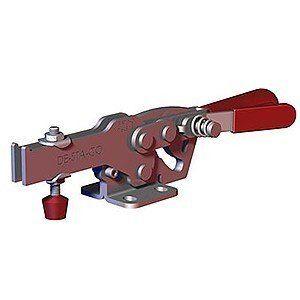

2017-UR Horizontal Hold-Down Toggle Locking Clamp
Flanged or straight base versions
With Toggle-Lock Plus feature
Adjustable pre-load
Part No.: 2017-UR
Series: 2017
Maxmum Holding Capacity (N): 2,500
Maximum Holding Capacity (lbsf): 560
Clamp Arm Length (mm): 64.3
Clamp Arm Length (in): 2.530
Height Under Clamp Arm (mm): 24.9
Height Under Clamp Arm (in): 0.980
Clamp Bar Opening (+10°) (degrees): 73
Handle Opening (+10°): 69
Available: Yes
Standard Material: Steel
Toggle Lock Plus: Yes
Accommodates Workpiece Variation: No
Base Mounting Style: Flange
Clamp Arm Style: U-Bar
Handle: Horizontal
Service Environment: Normal
Duty Cycle: 2
Product Type: Standard
Weight (kg): 0.44
Weight (lb): 0.97
Application: Welding: Fair/Medium, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Not Recommended
Specifications
Handle :
HorizonalDuty Cycle :
2Weight (lb) :
0.97Product Type :
StandardPublishedDate :
1674508545000Product Series :
2017Clamp Arm Style :
U-BarFlanged Washers :
215105DistributorGroup :
Workholding (Manual, Power and Hydraulic Clamps)Product Function :
ClampingSpindle Assembly :
215208-MToggle Lock Plus :
YesStandard Material :
SteelBase Mounting Style :
FlangeService Environment :
NormalApplication - Welding :
Fair/MediumClamp Arm Length (in) :
2.53Application - Assembly :
Excellent/HighApplication - Closures :
Excellent/HighHandle Opening (+10°) :
69.0Application - Machining :
Poor/LowApplication - Wood-Working :
Excellent/HighHeight Under Clamp Arm (in) :
0.98Application - Food Processing :
Not RecommendedMaximum Holding Capacity (lbf) :
560.0Accomodates Workpiece Variation :
NoApplication - Checking Fixtures :
Excellent/HighClamp Bar Opening (+10°) (degrees) :
73.0Downloads
