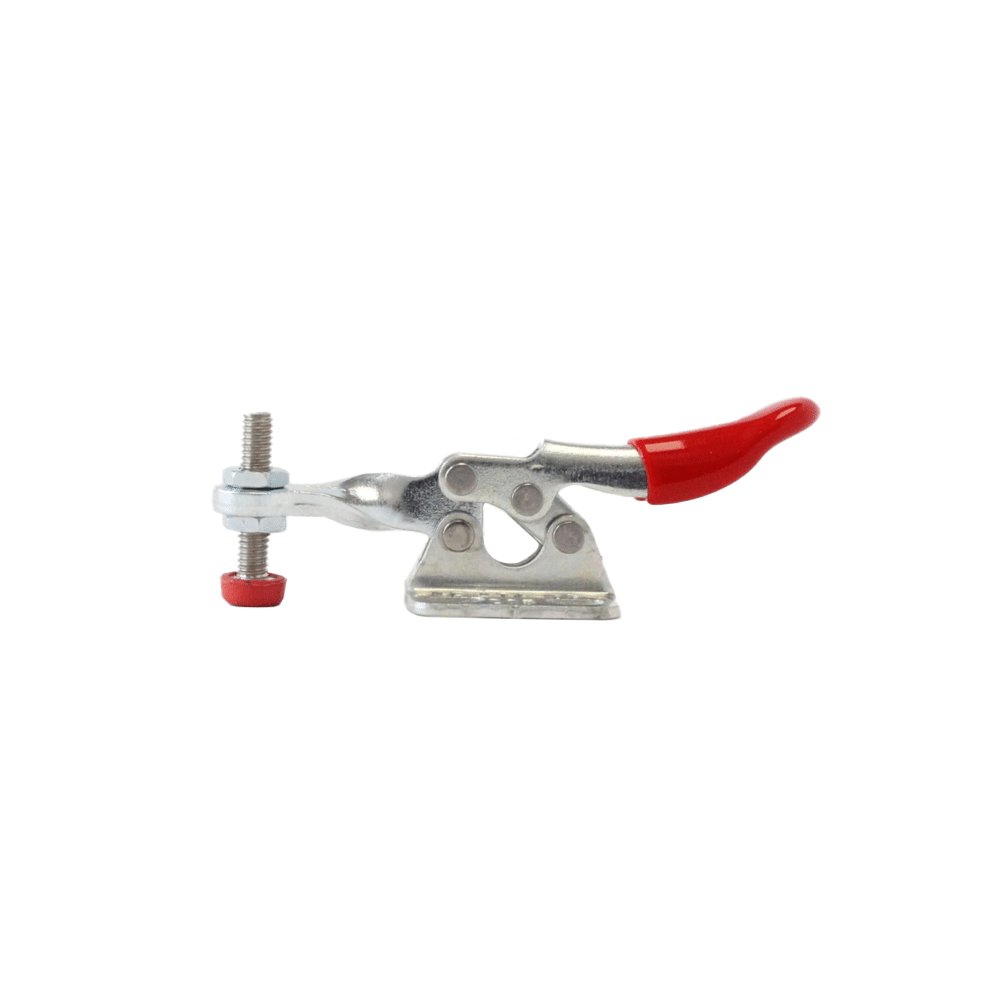

Destaco 205-S Horizontal Hold-Down Toggle Locking Clamp

SKU#: 205-S

Vendor: Destaco

Horizontal Hold-Down Toggle Locking Clamp
Maximum Holding Capacity 60 (lbsf)
Manufacture No.: 205-S

Inventory:

205-S Horizontal Hold-Down Toggle Locking Clamp

  • Supplied with neoprene spindle assembly.
  • Solid clamp arm
  • Model no.: 205-S
  • Maximum Holding Capacity (N): 270
  • Maximum Holding Capacity (lbsf): 60
  • Clamp Arm Length (mm): 22.4
  • Clamp Arm Length (in): 0.880
  • Height Under Clamp Arm (mm): 9.1
  • Height Under Clamp Arm (in): 0.360
  • Clamp Bar Opening (+10°) (degrees): 94
  • Handle Opening (+10°): 82
  • Available: Yes
  • Standard Material: Steel
  • Toggle Lock Plus: No
  • Accommodates Workpiece Variation: No
  • Base Mounting Style: Flange
  • Clamp Arm Style: Solid Bar
  • Handle: Horizontal
  • Service Environment: Normal
  • Duty Cycle: 2
  • Product Type: Standard
  • holding force: 250: N
  • angle: 90°
  • standard equipment: 205208-M
  • Weight (kg): 0.03 (0.07 lbs)
Application: Welding: Poor/Low, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium
