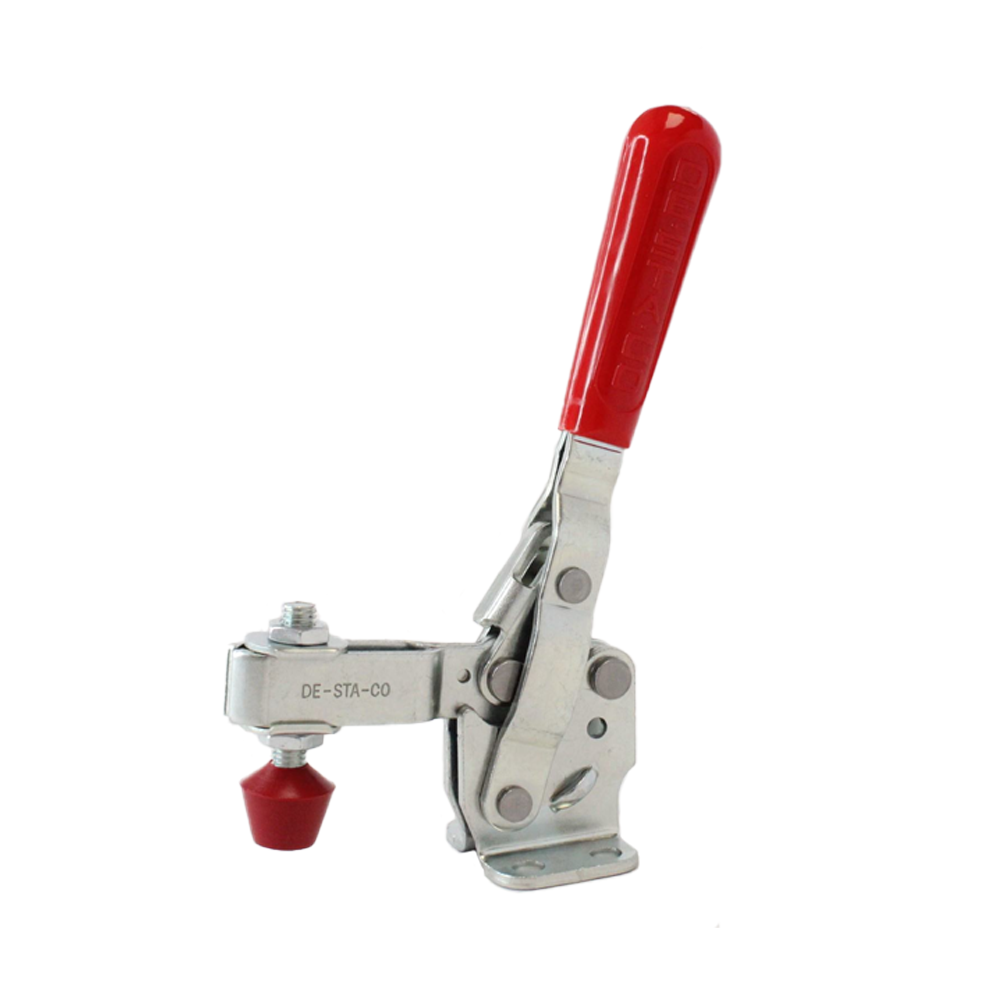

Destaco 207-U | Vertical Hold-Down Toggle Locking Clamp
Product Details
In Stock: 23
Couldn't load pickup availability
Description
207-U Vertical Hold-Down Toggle Locking Clamp
Model no.: 207-U
Maximum Holding Capacity (N): 1,670
Maximum Holding Capacity (lbsf): 375
Clamp Arm Length (mm): 54.4
Clamp Arm Length (in): 2.140
Height Under Clamp Arm (mm): 31.8
Height Under Clamp Arm (in): 1.250
Clamp Bar Opening (+10°)(degrees): 99
Handle Opening (+10°): 57
Standard Material: Steel
Toggle Lock Plus: No
Accommodates Workpiece Variation: No
Base Mounting Style: Flange
Clamp Arm Style: U-Bar
Handle: Vertical
Service Environment: Normal
Duty Cycle: 2
Holding Force: 1700: N
Angle: 100°
Standard Equipment: 225208-M
Product Type: Standard
Weight (kg): 0.30 (0.66 lb)
Additional Features:
Supplied with neoprene spindle
Ergonomic handle grip included
Application: Welding: Poor/Low, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium
Specifications
Handle :
VerticalDuty Cycle :
2Weight (lb) :
0.66Handle Color :
RedProduct Type :
StandardProduct Series :
207Clamp Arm Style :
U-BarFlanged Washers :
507107DistributorGroup :
Workholding (Manual, Power and Hydraulic Clamps)Product Function :
ClampingSpindle Assembly :
225208-MToggle Lock Plus :
NoStandard Material :
SteelBase Mounting Style :
FlangeService Environment :
NormalApplication - Welding :
Poor/LowClamp Arm Length (in) :
2.14Application - Assembly :
Excellent/HighApplication - Closures :
Excellent/HighHandle Opening (+10°) :
57.0Application - Machining :
Poor/LowApplication - Wood-Working :
Excellent/HighHeight Under Clamp Arm (in) :
1.25Application - Food Processing :
Fair/MediumMaximum Holding Capacity (lbf) :
375.0Accomodates Workpiece Variation :
NoApplication - Checking Fixtures :
Excellent/HighClamp Bar Opening (+10°) (degrees) :
99.0Downloads
