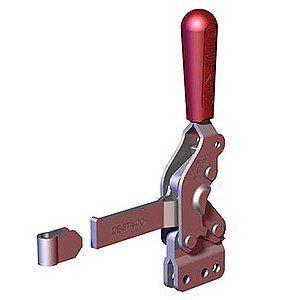

Destaco 207-USS Vertical Hold-Down Toggle Locking Clamp

  • Destaco 207-USS Vertical Hold-Down Toggle Locking Clamp

Product Details

SKU
207-USS
Vendor
Destaco
Inventory

In Stock: 454

$54.01 USD
$51.41 USD MSRP $54.01 USD

Description

207-USS Vertical Hold-Down Toggle Locking Clamp

  • Stainless steel
  • U-bar clamping arm supplied with stainless steel hex head spindle
  • Model No.: 207-USS
  • Maximum Holding Capacity (N): 2,000
  • Maximum Holding Capacity (lbsf): 450
  • Clamp Arm Length (mm): 72.4
  • Clamp Arm Length (in): 2.850
  • Height Under Clamp Arm (mm): 31.8
  • Height Under Clamp Arm (in): 1.250
  • Clamp Bar Opening (+10°) (degrees): 99
  • Handle Opening (+10°): 57
  • Standard Material: Stainless Steel
  • Toggle Lock Plus: No
  • Accommodates Workpiece Variation: No
  • Base Mounting Style: Flange
  • Clamp Arm Style: U-Bar
  • Handle: Vertical
  • Service Environment: Normal
  • Duty Cycle: 2
  • Product Type: Stainless Steel
  • EDP No.: 52079
  • Handle Moves: 62°
  • Bar Opens: 115°
  • Weight (kg): 0.32 (0.71 lb)
Additional Features:
  • Stainless steel
  • U-bar clamping arm supplied with stainless steel hex head spindle
Application: Welding: Poor/Low, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium

Specifications

Handle :

Vertical

Duty Cycle :

2

Weight (lb) :

0.71

Product Type :

Vertical Hold-Down Clamps

Product Series :

207

Clamp Arm Style :

U-Bar

Flanged Washers :

507907

DistributorGroup :

Workholding (Manual, Power and Hydraulic Clamps)

Product Function :

Clamping

Toggle Lock Plus :

No

Standard Material :

Stainless Steel

Base Mounting Style :

Flange

Service Environment :

Normal

Application - Welding :

Poor/Low

Clamp Arm Length (in) :

2.85

Application - Assembly :

Excellent/High

Application - Closures :

Excellent/High

Handle Opening (+10°) :

57

Application - Machining :

Poor/Low

Application - Wood-Working :

Excellent/High

Height Under Clamp Arm (in) :

1.25

Application - Food Processing :

Fair/Medium

Maximum Holding Capacity (lbf) :

450

Accomodates Workpiece Variation :

No

Application - Checking Fixtures :

Excellent/High

Clamp Bar Opening (+10°) (degrees) :

99
