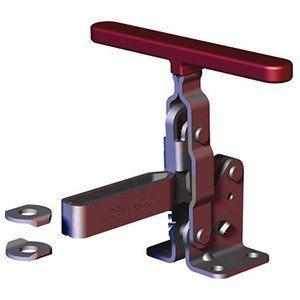

Destaco 210-TU Vertical T-Handle Hold-Down Toggle Locking Clamp
Description
210-TU Vertical Hold-Down Toggle Locking Clamp
- Model No.: 210-TU
- Maximum Holding Capacity (N): 2,670
- Maximum Holding Capacity (lbsf): 600
- Clamp Arm Length (mm): 91.9
- Clamp Arm Length (in): 3.620
- Height Under Clamp Arm (mm): 42.4
- Height Under Clamp Arm (in); 1.670
- Clamp Bar Opening (+10°) (degrees): 103
- Handle Opening (+10°): 58
- Standard Material: Steel
- Toggle Lock Plus: No
- Accommodates Workpiece Variation: No
- Base Mounting Style: Straight
- Clamp Arm Style: U-Bar
- Handle: T-Handle
- Service Environment: Normal
- Duty Cycle: 2
- Product Type: Standard
- EDP No.: 52102
- Handle Moves: 58°
- Bar Opens: 106°
- Weight (kg): 0.62 (1.37 lb)
Additional Features:
- Supplied with neoprene spindle.
- Low profile T-handle
Application: Welding: Fair/Medium, Assembly: Excellent/High, Checking: Fixtures Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Fair/Medium, Food Processing: Fair/Medium
Specifications
Handle :
T-HandleDuty Cycle :
2Weight (lb) :
1.37Product Type :
StandardProduct Series :
210Clamp Arm Style :
U-BarFlanged Washers :
235106DistributorGroup :
Workholding (Manual, Power and Hydraulic Clamps)Product Function :
ClampingToggle Lock Plus :
NoStandard Material :
SteelBase Mounting Style :
StraightService Environment :
NormalApplication - Welding :
Fair/MediumClamp Arm Length (in) :
3.62Application - Assembly :
Excellent/HighApplication - Closures :
Fair/MediumHandle Opening (+10°) :
58Application - Machining :
Poor/LowApplication - Wood-Working :
Excellent/HighHeight Under Clamp Arm (in) :
1.67Application - Food Processing :
Fair/MediumMaximum Holding Capacity (lbf) :
600Accomodates Workpiece Variation :
NoApplication - Checking Fixtures :
Excellent/HighClamp Bar Opening (+10°) (degrees) :
103Downloads
