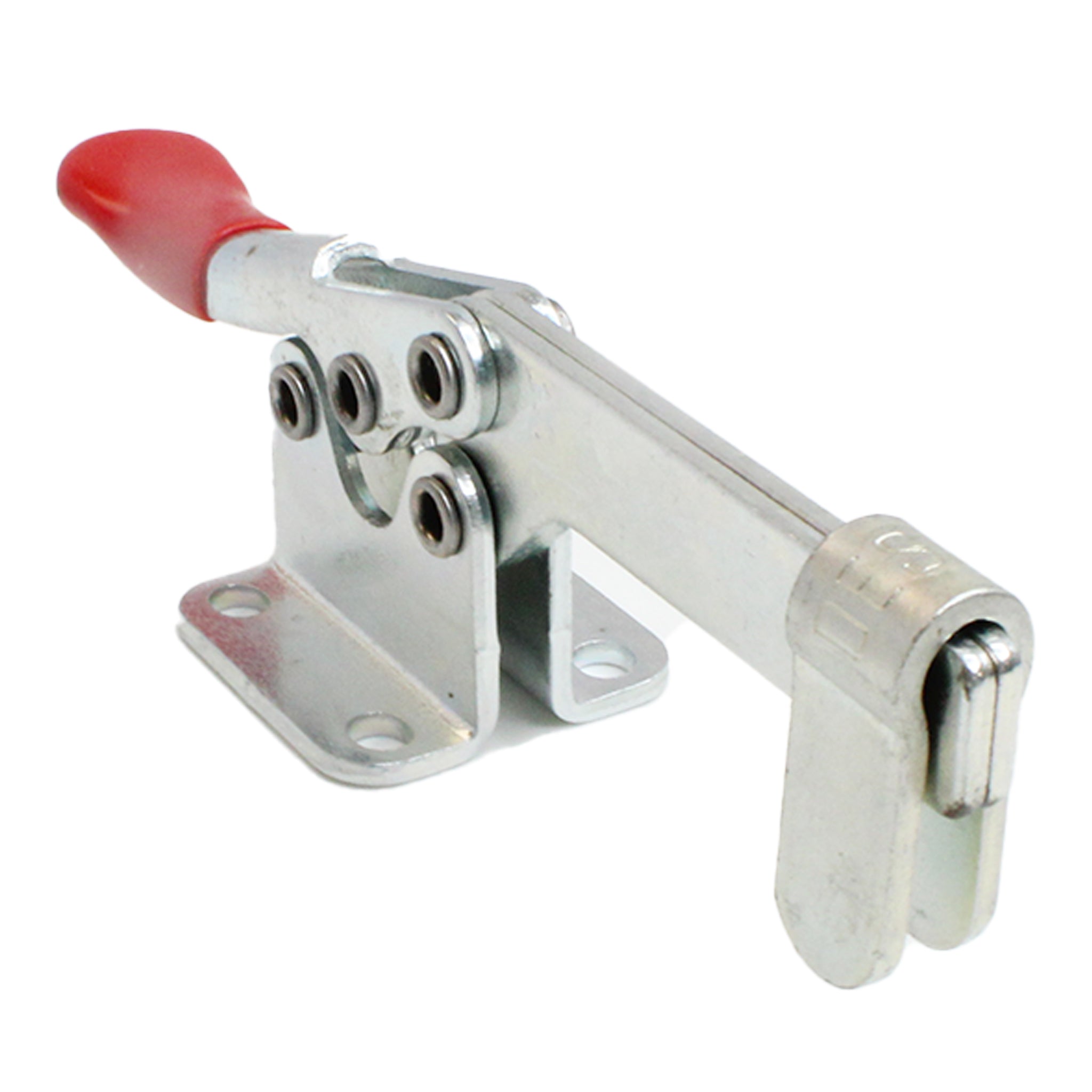

Destaco 215-S Horizontal Hold-Down Toggle Locking Clamp

Destaco DES-215-S - Destaco Horizontal Hold Down Clamp
Product images are for illustrative purposes only and may differ from the actual product.

Product Information

SKU
215-S
Vendor
Destaco
Inventory

Product Summary

Destaco

$20.00 USD
$22.39 USD MSRP $20.00 USD
Shipping calculated at checkout.
Product Details

215-S Horizontal Hold-Down Toggle Locking Clamp

  • Model no.: 215-S
  • Maximum Holding Capacity (N): 8,590
  • Maximum Holding Capacity (lbsf): 200
  • Clamp Arm Length (mm): 58.2
  • Clamp Arm Length (in): 2.290
  • Height Under Clamp Arm (mm): 25.4
  • Height Under Clamp Arm (in): 1.000
  • Clamp Bar Opening (+10°) (degrees): 87
  • Handle Opening (+10°): 78
  • Standard Material: Steel
  • Toggle Lock Plus: No
  • Accommodates Workpiece Variation: No
  • Base Mounting Style: Flange
  • Clamp Arm Style: Solid Bar
  • Handle: Horizontal
  • Service Environment: Normal
  • Duty Cycle: 2
  • Product Type: Standard
  • No.: 52151
  • Handle Moves: 70°
  • Bar Opens: 87°
  • Weight (kg): 0.15 (0.33 lb)
Additional Features:
  • Clamp supplied with neoprene spindle
  • Low profile
Application: Welding: Fair/Medium, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium
