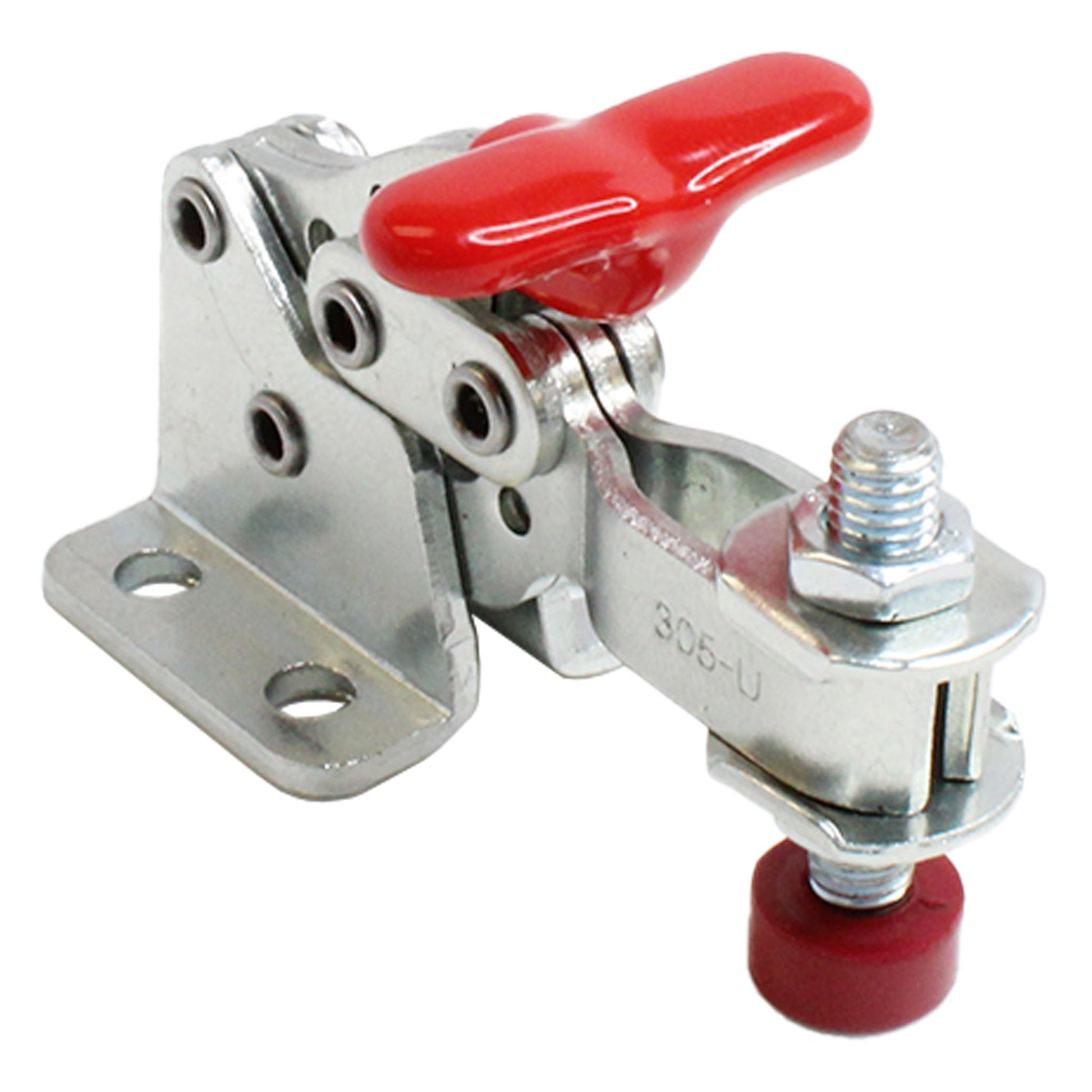

Destaco 305-U | Horizontal Hold-Down Toggle Locking Clamp
Product Details
In Stock: 382
Couldn't load pickup availability
Description
305-U Horizontal Hold-Down Toggle Locking Clamp
 • Model No.: 305-U
 • Maximum Holding Capacity (N) 670
 • Maximum Holding Capacity (lbsf) 150
 • Clamp Arm Length (mm) 30.2
 • Clamp Arm Length (in) 1.190
 • Height Under Clamp Arm (mm) 12.2
 • Height Under Clamp Arm (in) 0.480
 • Clamp Bar Opening (+10°) (degrees) 90
 • Handle Opening (+10°) 170
 • Standard Material: Steel
 • Toggle Lock Plus: No
 • Accommodates Work-piece Variation: No
 • Base Mounting Style Flange
 • Clamp Arm Style: U-Bar
 • Handle: Horizontal
 • Service Environment Normal
 • Duty Cycle: 2
 • Product Type: Compact
 • Holding Force: 650 N
 • Standard Equipment 305208-M
 • Weight: 0.06kg (0.13lb)
 Additional Features:
 • Up to 150 lb. (670 N) capacity
 • Supplied with neoprene spindle
 • Stainless steel models available
 Applications: Welding: Poor/Low, Assembly: Excellent/High, Checking Fixtures: Fair/Medium, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium
Specifications
Handle :
HorizonalDuty Cycle :
2Weight (lb) :
0.13Product Type :
CompactProduct Series :
305/307/309Clamp Arm Style :
U-BarFlanged Washers :
12111DistributorGroup :
Workholding (Manual, Power and Hydraulic Clamps)Product Function :
ClampingSpindle Assembly :
305208-MToggle Lock Plus :
NoStandard Material :
SteelBase Mounting Style :
FlangeService Environment :
NormalApplication - Welding :
Poor/LowClamp Arm Length (in) :
1.19Application - Assembly :
Excellent/HighApplication - Closures :
Excellent/HighHandle Opening (+10°) :
170Application - Machining :
Poor/LowApplication - Wood-Working :
Excellent/HighHeight Under Clamp Arm (in) :
0.48Application - Food Processing :
Fair/MediumMaximum Holding Capacity (lbf) :
150Accomodates Workpiece Variation :
NoApplication - Checking Fixtures :
Fair/MediumClamp Bar Opening (+10°) (degrees) :
90Downloads
