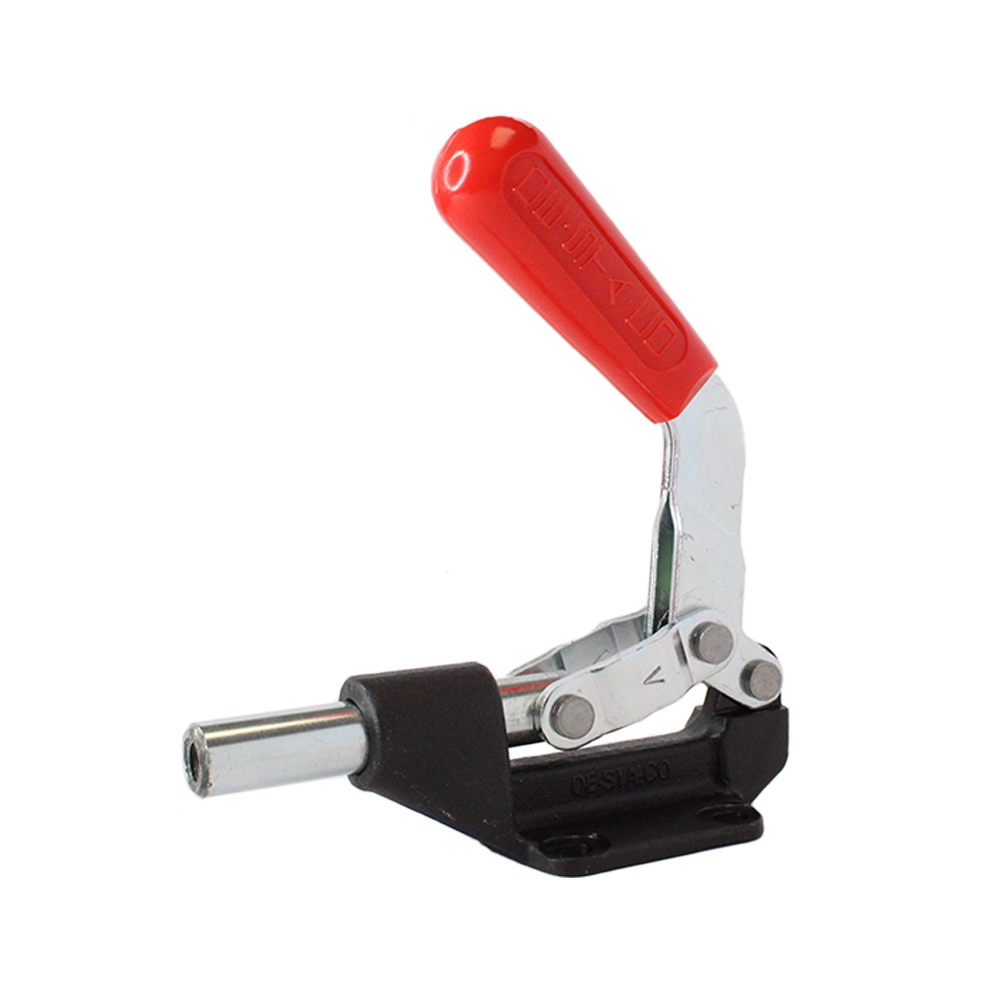

Destaco 608 Straight Line Action Clamp

SKU#: 608

Low quantity. Product may take longer to ship.

Vendor: Destaco

Straight Line Action Clamp
Maximum Holding Capacity 850 (lbsf)
Manufacture No.: 608

Inventory:

608 Straight Line Action Clamp

Large holding capacity for its size
Locks in both extended and retracted position
Imperial or Metric Product Imperial
Maximum Holding Capacity (N): 3,780
Maximum Holding Capacity (lbsf): 850
Plunger Travel (mm): 41.4
Plunger Travel (in): 1.630
Plunger Height (mm): 31.8
Plunger Height (in): 1.250
Ef:Af Exerting Force: Applied Force ((pushing/pulling)): 44:1/50:1
Plunger Thread: 3/8-16
Standard Material: Steel
Toggle Lock Plus: No
Base Mounting Style: Flange
Plunger: Round
Spindle (Recommended): 210203
Spindle Included?: No
Preferred Market: NA/SA
Product Type: Standard
EDP No.: 56080
Weight 0.57(kg)[1.26(lb)]
