SKU#: HiP-R-1
Low quantity. Product may take longer to ship.
Vendor: HiP
HiP Pressure Vessel Reactors / R Series / One Piece Cover
Maximum Working PSI Pressure ranges from 10,000 up to 150,000 psi service rating
Connection Location: One Connections (top cover) 1/4" tubing
Connection Type: High Pressure (coned and threaded, female)
Inside/Outside Diameter size range: 3 1/8" up to 12"
Inside Depth sizes available: 6" and 24" length
Call for Price
Inventory:HiP Pressure Vessel Reactors / MS Series (micro)
Working PSI Pressure ranges of 20,000 psi and 60,000 psi service rating
Connection Type: High Pressure (coned and threaded)
Capacity: 50 milliliters up to 15 liters
Outside Diameter size: 9/16", 1" o.d. - Inside Diameter size: 3/16", 5/16: 9/16" i.d.
Inside Depth sizes available: 4" to 20" - Overall Lengths 6 1/2" to 23"

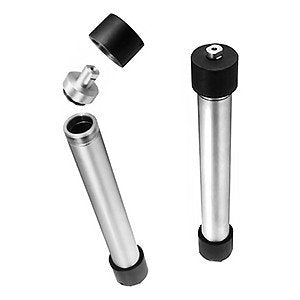

HiP Pressure Vessel Reactors / T Series (tubular)
Maximum Working PSI Pressure ranges from 10,000 up to 100,000 psi service rating
Connection Location: One Connections (double enaded pressure vessel) 1/4" o.d. tubing
Connection Type: High Pressure (coned and threaded)
Inside/Outside Diameter size range: 1 1/2" up to 5" o.d. and 3/4" up to 4" i.d.
Inside Depth sizes available: lengths and modification are supplied on request
HiP R Series / Reactor
Maximum Working PSI Pressure ranges from 10,000 up to 100,000 psi service rating
Connection Location: One Connections (top cover) 1/4" tubing
Connection Type: High Pressure (coned and threaded, female)
Inside/Outside Diameter size range: 6" up to 15 1/4" o.d. and 3" up to 10" i.d.
Inside Depth sizes available: 6" and 24" length
HiP Pressure Vessels Reactors / CL Series
Maximum Working PSI Pressure: 30,000psi service rating
Connection Location: Two Connections (top cover) 1/4" tubing
Connection Type: High Pressure (coned and threaded, female)
Inside/Outside Diameter size range: 3" up to 9 1/2"
Inside Depth sizes available: 9" and 22" length
HiP GC Series / Reactor
Maximum Working PSI Pressure: 16,000psi service rating
Connection Location: Two Connections (top cover) 1/4" tubing
Connection Type: High Pressure (coned and threaded, female)
Inside/Outside Diameter size range: 3" up to 9 1/2" o.d. | 1" up to 5" i.d.
Inside Depth sizes available: 10" and 21" length

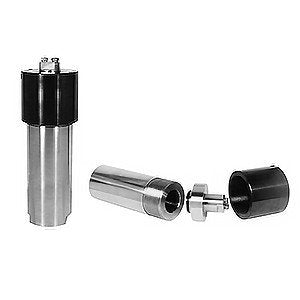

HiP Pressure Vessel Reactors / OC Series
Maximum Working PSI Pressure: 16,000psi service rating
Connection Location: Two Connections (top cover) 1/4" tubing
Connection Type: High Pressure (coned and threaded, female)
Inside/Outside Diameter size range: 2 1/2" up to 6 7/8"
Inside Depth sizes available: 10" and 21" length
HiP Pressure Vessel Reactors / BC Series
Maximum Working PSI Pressure: 5,000 psi service rating
Connection Location: Two Connections (top cover) 1/4" tubing
Connection Type: High Pressure (coned and threaded, female)
Inside Diameter size range: 2" up to 6 1/2"
Inside Depth sizes available: 6" and 14" length
