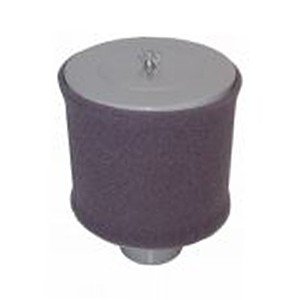

Solberg FT-Series 1/4" - 6" Inlet Filters
Compact Exposed/Open Element Filters, Up to 1100 SCFM (1870 m3/hr)
- Polyester: 99%+ removal efficiency standard to 5 micron
- Paper: 99%+ removal efficiency standard to 2 micron
- Interchangeable elements
- Continuous temperature minimum: -15° F (-26° C)
- Continuous temperature rating complete assembly maximum: 220°F (104°C)
- Filter change out differential: 10"-15" in. H2O above initial delta P
- Pressure drop graphs available upon request
- Durable carbon steel construction with baked enamel finish
- Durable heavy gauge base with low pressure drop bracket and pipe design
- Less maintenance
- Exposed element for optimal air flow
- MIN assembly models are an integrated disposable filter.

Options (upon request): Various elements available - Special connections, BSPT/Metric - Available in Stainless Steel - FPT Inlet/NPT outlet combination available - Hot dipped galvanized housings - Hot dipped galvanized housings - SPECIALTY Media Available Higher Efficiency, Custom Media - Specialty media and gaskets/seals for custom installations/applications

Suggested Applications: Ash Handling - Blowers/Side Channel - Cement - Compressor/Piston - Compressor/Screw - Construction/Contractor Industry - Dock Controls - Hydraulic Breathers/fine filtration - Pneumatic Conveying Systems - Power Plants - Sparging - Waste Water Aeration - Workshop - Industrial and Severe Duty
