Wago 221-412 (100 Pk) Compact Splicing Connector 2-Conductor Terminal Block

SKU#: 221-412-100PK

Vendor: Wago

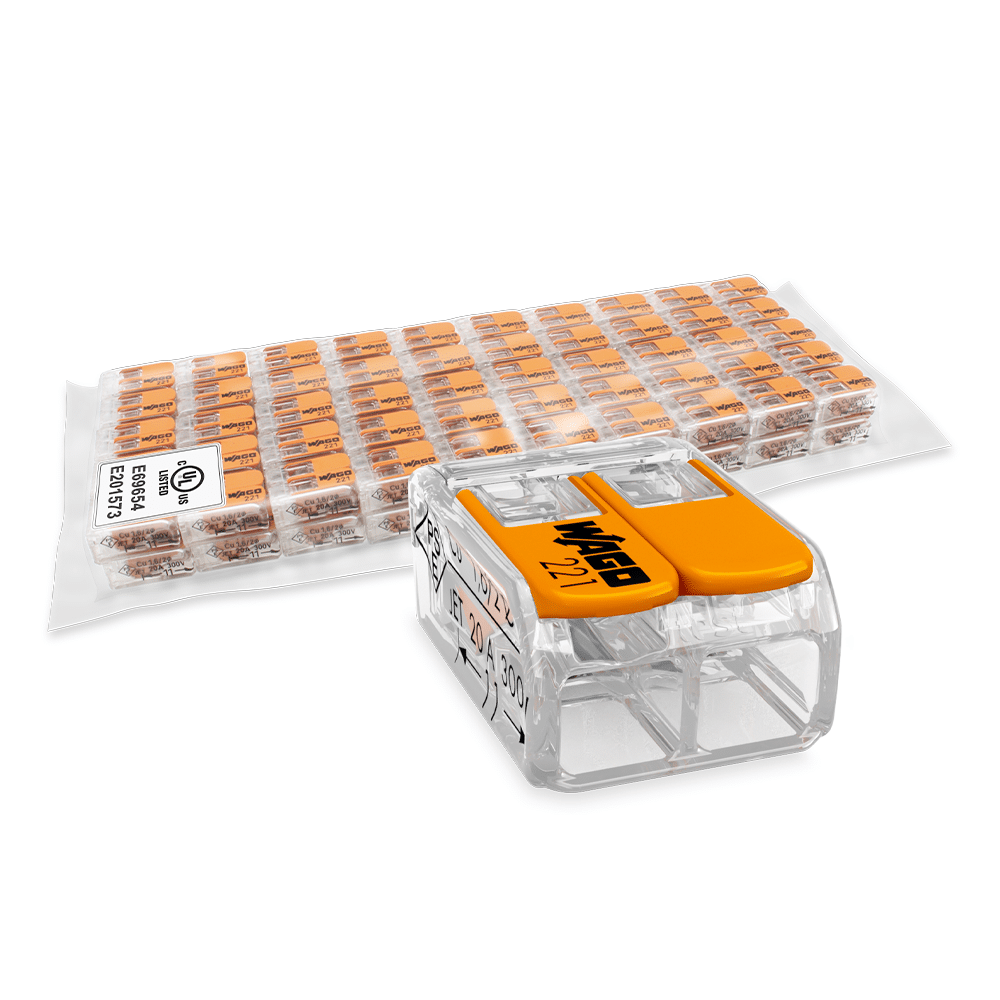

WAGO New 2-Conductor Terminal Block (100-PK)
Design: 40% Smaller, Transparent housing for easy viewing and two test ports
One splicing connector for all types of wire ranges: 0.14 to 4 mm² (24–12 AWG)
Manufacture No.: 221-412 (100 connectors per pack)

Bulk Pack:  500 Pack (Save 12%) Buy Now

Single Terminal Block: Buy Now

100 units per package Wago 221-412 / Cage Clamp Technology

  • Maximum Operating Temperature 85°C
  • 2 points of connection, 1 potential
  • Rated voltage EN (1)[V]: 450V
  • Rated surge Voltage (1)[V]: 4kV
  • Normal Current 32A
  • Nominal cross section 1: 4 mm²
  • Strip length 1: 11 mm / 0.43 in, Offers side-entry wiring
  • Solid sizes, Stranded, connectable and Fine-stranded wires1: 0.2 ... 4 mm² / 24 ... 12 AWG
  • Size Range: Width:13.1mm / 0.516in - Height: 8.3mm / 0.32 in - Length: 18.6mm / 0.732in
  • Flammability rating per UL94: V2
  • Safety information 1: in grounded power lines
