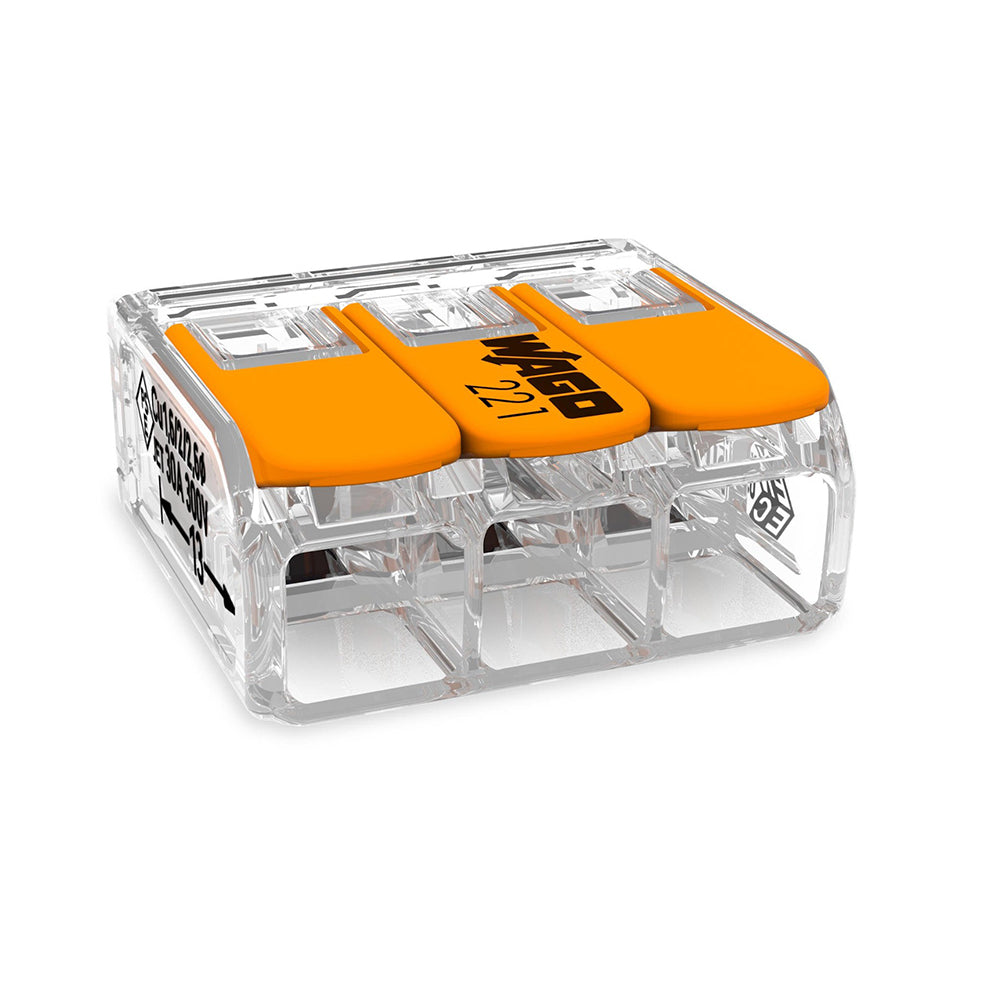

Wago 221-613 Compact Splicing Connector 3-Conductor Terminal Block

SKU#: 221-613

Vendor: Wago

New WAGO Compact Splicing Connector, 3-conductor terminal block
Design: 40% Smaller, Transparent housing for easy viewing and two test ports.
The one splicing connector for all types of wire from 0.5 to 6 mm² (20–10 AWG).
Manufacture No.: 221-613 (Individually sold)

Inventory:

"Individually Sold" Single unit purchase Wago 221-613 Connectors / Cage Clamp technology

  • Three (3) conductor terminal blocks with operating levers that open and close easily
  • Hollowed-out grips designed to hold any connector in it's place in any situation.
  • Maximum Operating Temperature 85°C, 3 points of connection, 1 potential
  • Rated voltage EN (1)[V]: 450V and Rated surge Voltage (1)[V]: 4kV, Normal Current 31A
  • Nominal cross section 1: 6 mm²
  • Solid sizes, Stranded, connectable and Fine-stranded wires 1: 0.5 ... 6 mm² / 20 ... 10 AWG
  • Strip length 1: 12... 14 mm / 0.47... 0.55 in, Offers side-entry wiring
  • Size: Width: 22.9mm / 0.902in - Height: 10.1mm / 0.398in - Length: 21.1mm / 0.831in
  • Flammability rating per UL 94: V2
  • Safety information 1: in grounded power lines
