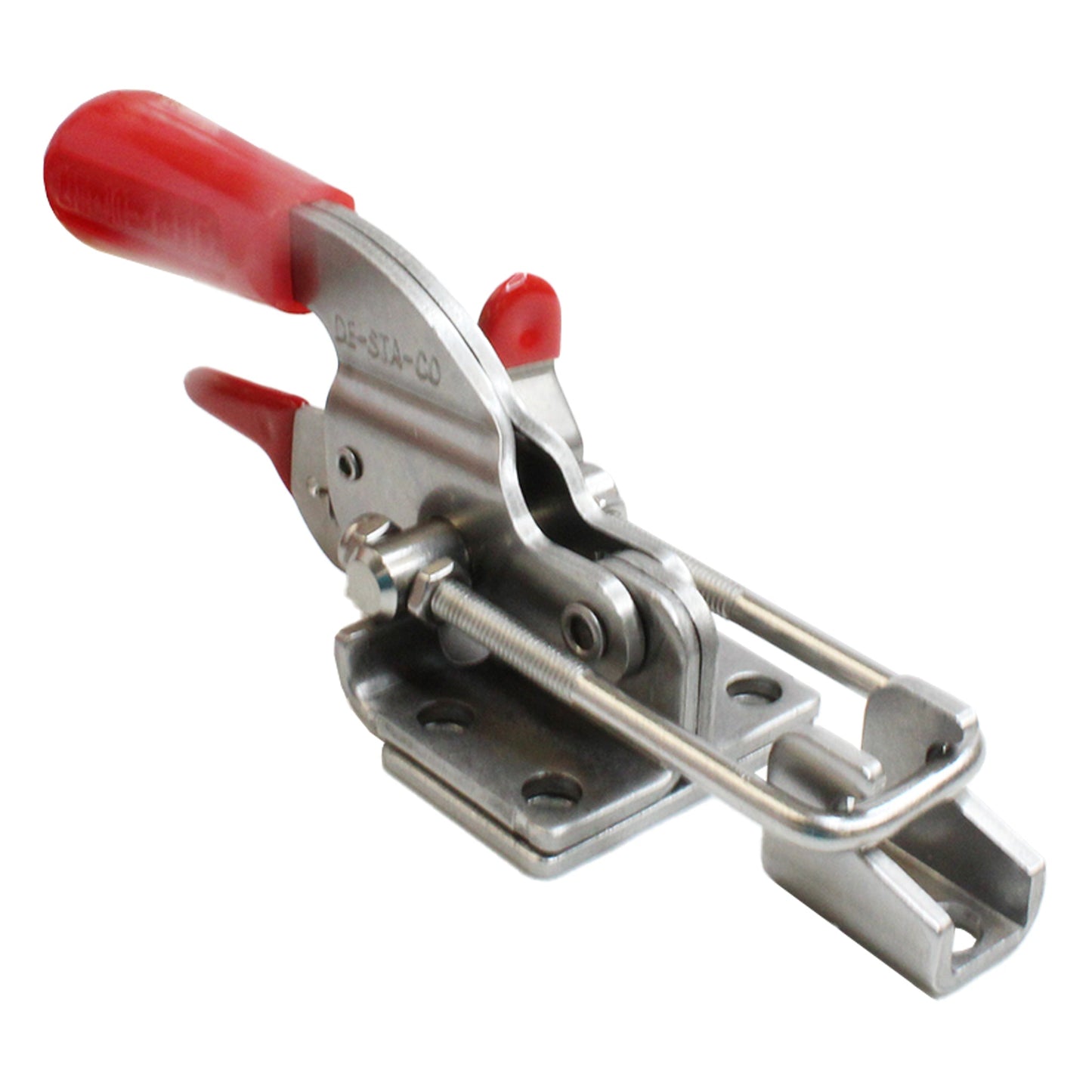

331-RSS Pull-Action Latch Clamp

 • Model No.: 331-RSS
 • Maximum Holding Capacity (N): 3,200
 • Maximum Holding Capacity (lbsf): 700
 • Drawing Movement (mm): 44.5
 • Drawing Movement (in): 1.780
 • Hook Adjustable Range (mm): 22.1
 • Max Hook Adjustment (in): 0.590
 • Ef:Af Exerting Force: Applied Force ((pushing/pulling)): 32:1
 • Standard Material: Stainless Steel
 • Toggle Lock Plus: Yes
 • Base Mounting Style: Flange
 • Drawing Movement (mm): 44.5
 • Hook Type: U-Hook (Horizontal)
 • Latch Plate: 331905
 • Latch Plate Supplied?: Yes
 • Replacement Hook Assembly: 331915
 • Product Type: Standard
 • Drawing Movement: 1.75INCH
 • Thread: M5x0.8
 • Overall Hook Length: 3.00INCH
 • Weight: 0.25kg (0.55lbs)

Additional Features:
 • Destaco Toggle Lock Plus versions of the models 323, 331, and 341
 • Ideal for latching applications on molds, doors, lids, access covers
 • Stainless Steel
 • Patented Thumb Control Lever provides one-handed operation
 • Supplied with threaded U-hooks for easy adjustment
 • Latch plate included
 • With Toggle Lock Plus
