Cejn 19-359-1608 Gauge Connection Coupling with Pressure Damper G 1/4"
Product Information
SKU
19-359-1608
Vendor
Cejn
Product Summary
Cejn
Product Details
Cejn 19-359-1608 Gauge Connection Coupling with Pressure Damper G 1/4"

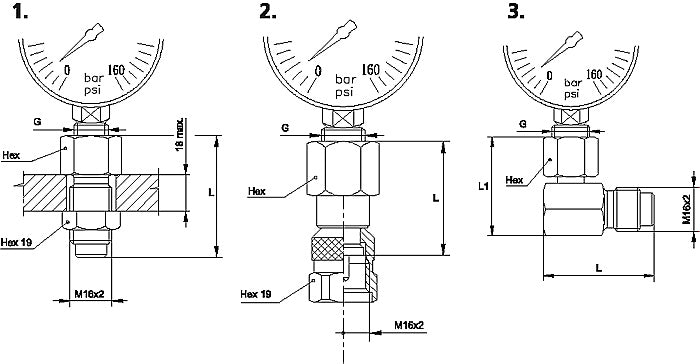

Gauge connections for the Press-Check system. They are available in a coupling version and two thread versions; one swivel connection and one bulkhead connection. The pressure gauge coupling is available in two version one free flow and one with pressure damper.
Category
With Pressure Damper
Description Class
Coupling
Connection
G 1/4"
Length
34 mm
Length 2
- mm
Hexagon
19 mm
Max working pressure
63.0 MPa
Material nipple
Steel (Zinc passivation, Zinc-Nickel)
Material seal
Nitrile (NBR)
Temperature range
-20°C — +100°C (-4°F — +212°F)
