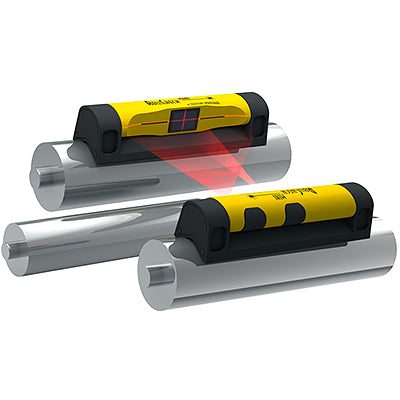

RollCheck® MINI SX-4150 is suitable for aligning rolls up to 4" (101 mm) in diameter that are spaced from 2" (51 mm) to 4 ft. (1200 mm) apart

• Uses proven Patented Reflected Laser Beam Technology
• Uses for shots up to 4 feet (1200m)
• No training required, system is fast and easy use, which facilitates more frequent roll checks
• Portable, compact design fits into small spaces
• Reduce downtime and increase production with proper alignment of rolls
• One person operation: Operator can view both the vertical (pitch) and horizontal (parallel) angles and accurately adjust the roll into parallel alignment
• Parallel Roll Alignment, utilizing the RollCheck® MINI Laser Roll Alignment System to measure and correct vertical and horizontal angle between 2 rolls.
• The RollCheck® MINI comes in its own durable carrying case

Transmitter Model SX-4150T

• Operating distance: Maximum 4 ft (1200mm)
• Accuracy: < 0.001"/ft (< 0.03mm/0.305m)
• Laser type: 2 each 635nm visible red laser lines 45˚ full angle
• Laser power: < 1mW Class 2
• Safety precautions: Do not stare into beam
• Laser compliance: CFR parts 1040.10 and 1040.11
• Laser line thickness: 0.017" (0.4318mm) at 4 ft (1200mm)
• Laser calibration: Factory calibrated, check yearly
• Environmental protection: Water resistant, dust proof and impact resistant
• Controls: Laser ON/OFF rocker switch
• Battery type: Rechargeable lithium Ion battery
• Operating time: 14 hours continuous at 72˚F(22˚ C)
• Temperature:
• Operating: 15˚F(-9˚C) to 104˚F(60˚C)
• Storage: -4˚F(-20˚C) to 140˚F(60˚C)
• Frame: Rigid aluminum frame, powder-coat paint finish
• Laser housing: Aluminum powder-coat paint finish Mounting diameters: Diameters up to 4"(101mm)
• Mounting straps:
• Set of 2 attachment straps included: 2 each 10"(254mm) bungee straps for diameters up to 4"(101mm)
• Weight: 1.6 lbs(.73Kg)
• Dimensions: 8.5"(216mm)W x 2.46"(62mm)D x 2.0"(50mm)H

Reflector Model SX-4150R

• Reflector size: 1"(25mm) x 1.4"(36mm)
• Frame: Rigid aluminum frame powder-coat paint finish
• Reflector housing: Aluminum powder-coat paint finish
• Mounting straps:
• Set of 2 attachment straps included: 2 each 10"(254mm) bungee straps for diameters up to 4"(101mm)
• Weight: 1.5 lbs (.70Kg)
• Dimensions: 8.5"(216mm)W x 2.46"(62mm)D x 2.0"(50mm)H
• Special Note: V-bracket with straps holds the RollCheck® MINI firmly in place

Carrying Case

• Material: Black, high density hard polyethylene
• Dimensions: 17"(432mm)W x 12"(305mm)D x 4.125"(105mm)H
• Insert: Die cut foam
• Carrying case weight: 2.21 lbs(1.0Kg)
• Total system weight: 5.3 lbs(2.4Kg)
