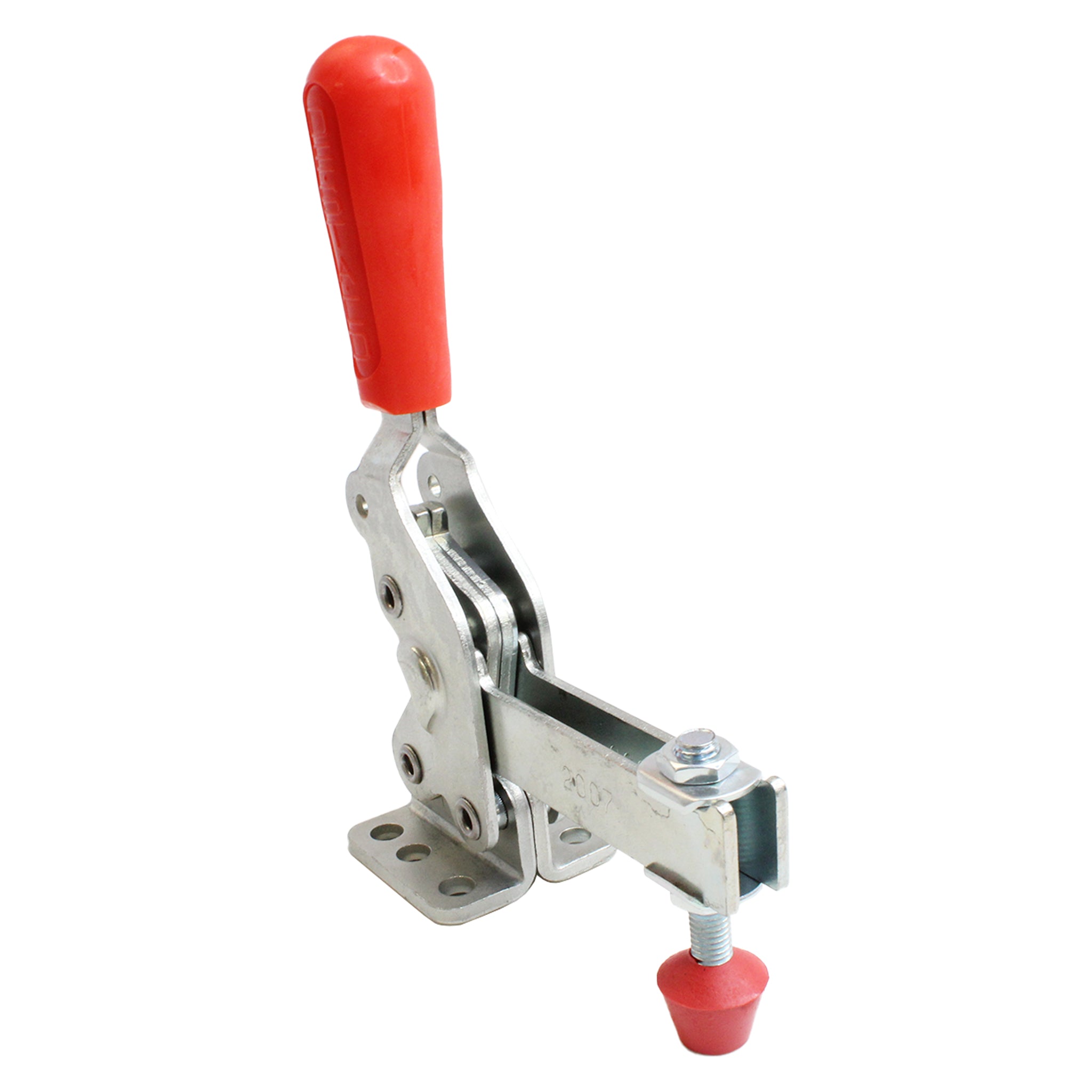

Destaco 2007-U | Vertical Hold-Down Toggle Locking Clamp
Product Details
In Stock: 2
Couldn't load pickup availability
Description
2007-U Vertical Hold-Down Toggle Locking Clamp
 • Model No.: 2007-U
 • Maximum Holding Capacity (N): 4,450
 • Maximum Holding Capacity (lbsf): 1,000
 • Clamp Arm Length (mm): 73.2
 • Clamp Arm Length (in): 2.880
 • Height Under Clamp Arm (mm): 31.8
 • Height Under Clamp Arm (in): 1.250
 • Clamp Bar Opening (+10°) (degrees): 76
 • Handle Opening (+10°): 64
 • Standard Material: Steel
 • Toggle Lock Plus: No
 • Accommodates Workpiece Variation: No
 • Base Mounting Style: Flange
 • Clamp Arm Style: U-Bar
 • Handle: Vertical
 • Service Environment: Normal
 • Duty Cycle: 2
 • Product Type: Standard
 • Weight: 0.54kg (1.19lb)
Additional Features:
 • New generation toggle clamp with over 2.5 times the capacity of our legacy models
Application: Welding: Fair/Medium, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Not Recommended
Specifications
Handle :
VerticalDuty Cycle :
2Weight (lb) :
1.19Handle Color :
RedProduct Type :
StandardProduct Series :
2002/2007Clamp Arm Style :
U-BarFlanged Washers :
507107DistributorGroup :
Workholding (Manual, Power and Hydraulic Clamps)Product Function :
ClampingSpindle Assembly :
2007208-MToggle Lock Plus :
NoStandard Material :
SteelBase Mounting Style :
FlangeService Environment :
NormalApplication - Welding :
Fair/MediumClamp Arm Length (in) :
2.88Application - Assembly :
Excellent/HighApplication - Closures :
Excellent/HighHandle Opening (+10°) :
64.0Application - Machining :
Poor/LowApplication - Wood-Working :
Excellent/HighHeight Under Clamp Arm (in) :
1.25Application - Food Processing :
Not RecommendedMaximum Holding Capacity (lbf) :
1000.0Accomodates Workpiece Variation :
NoApplication - Checking Fixtures :
Excellent/HighClamp Bar Opening (+10°) (degrees) :
76.0Downloads
