Destaco 201-U | Vertical Hold-Down Toggle Locking Clamp
Product Details
In Stock: 2071
Couldn't load pickup availability
Description

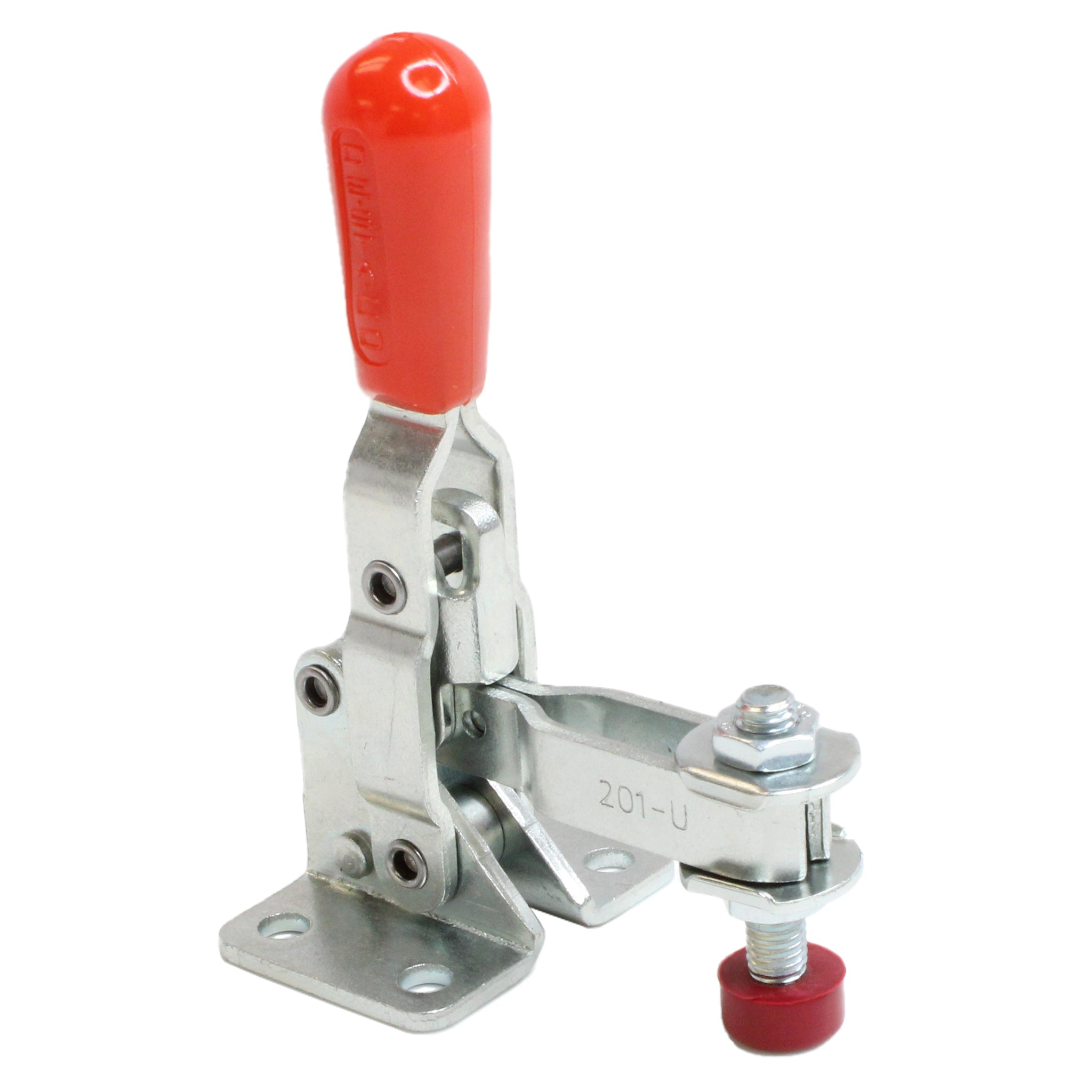

201-U Vertical Hold-Down Toggle Locking Clamp
Smallest Vertical Handle Clamp series
Supplied with neoprene spindle
Ergonomic handle grip included
Model no.: 201-U
Maximum Holding Capacity (N) 440
Maximum Holding Capacity (lbsf) 100
Clamp Arm Length (mm) 26.2
Clamp Arm Length (in): 1.030
Height Under Clamp Arm (mm): 16.0
Height Under Clamp Arm (in): 0.630
Clamp Bar Opening (+10°) (degrees): 100
Handle Opening (+10°): 55
Available: Yes
Standard Material: Steel
Toggle Lock Plus: No
Accommodates Workpiece Variation: No
Base Mounting Style: Flange
Clamp Arm Style: U-Bar
Handle: Vertical
Service Environment: Normal
Duty Cycle: 1
Product Type: Standard
holding force: 450: N
angle: 98°
standard equipment: 305208-M
Weight (kg): 0.70
Weight (lb): .54
Application: Welding: Poor/Low, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Not Recommended, Closures: Excellent/High, Food Processing: Fair/Medium
