Destaco 2010-SB | Vertical Hold-Down Toggle Locking Clamp

Destaco DES-2010-SB - Destaco Vertical Hold Down Clamp
Product images are for illustrative purposes only and may differ from the actual product.

Product Information

SKU
2010-SB
Vendor
Destaco
Inventory

Product Summary

Destaco

$63.17 USD
$63.17 USD MSRP $63.17 USD
Shipping calculated at checkout.
Product Details

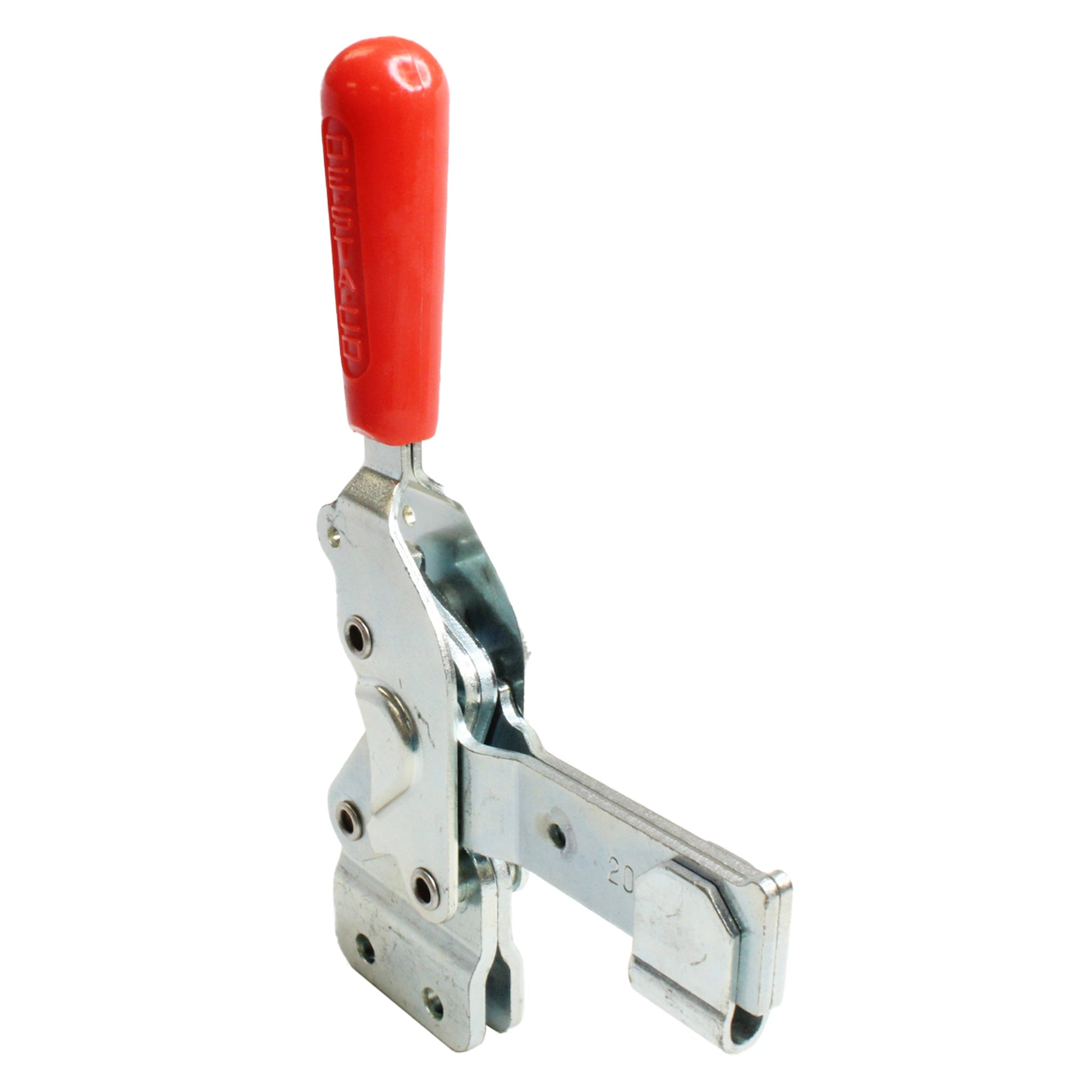

2010-SB Vertical Hold-Down Toggle Locking Clamp

 • Model No.: 2010-SB
 • Maximum Holding Capacity (N): 6,230
 • Maximum Holding Capacity (lbsf): 1,400
 • Clamp Arm Length (mm): 89.2
 • Clamp Arm Length (in): 3.510
 • Height Under Clamp Arm (mm): 55.9
 • Height Under Clamp Arm (in): 2.200
 • Clamp Bar Opening (+10°) (degrees): 78
 • Handle Opening (+10°): 66
 • Standard Material: Steel
 • Toggle Lock Plus: No
 • Accommodates Workpiece Variation: No
 • Base Mounting Style: Straight
 • Clamp Arm Style: Solid Bar
 • Handle: Vertical
 • Service Environment: Normal
 • Duty Cycle: 2
 • Product Type: Standard
 • Angle: 78°
 • Weight: 1.16kg (2.56lbs)

Additional Features:
 • New generation toggle clamp with over 2 times the capacity of our legacy models
 • Longer handle with greater hand clearance
 • Longer clamp arm
 • Spindle contacts workpiece vertically

Application: Welding: Fair/Medium, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Not Recommended
