Destaco 202-SS | Vertical Hold-Down Toggle Locking Clamp
Product Details
In Stock: 75
Couldn't load pickup availability
Description

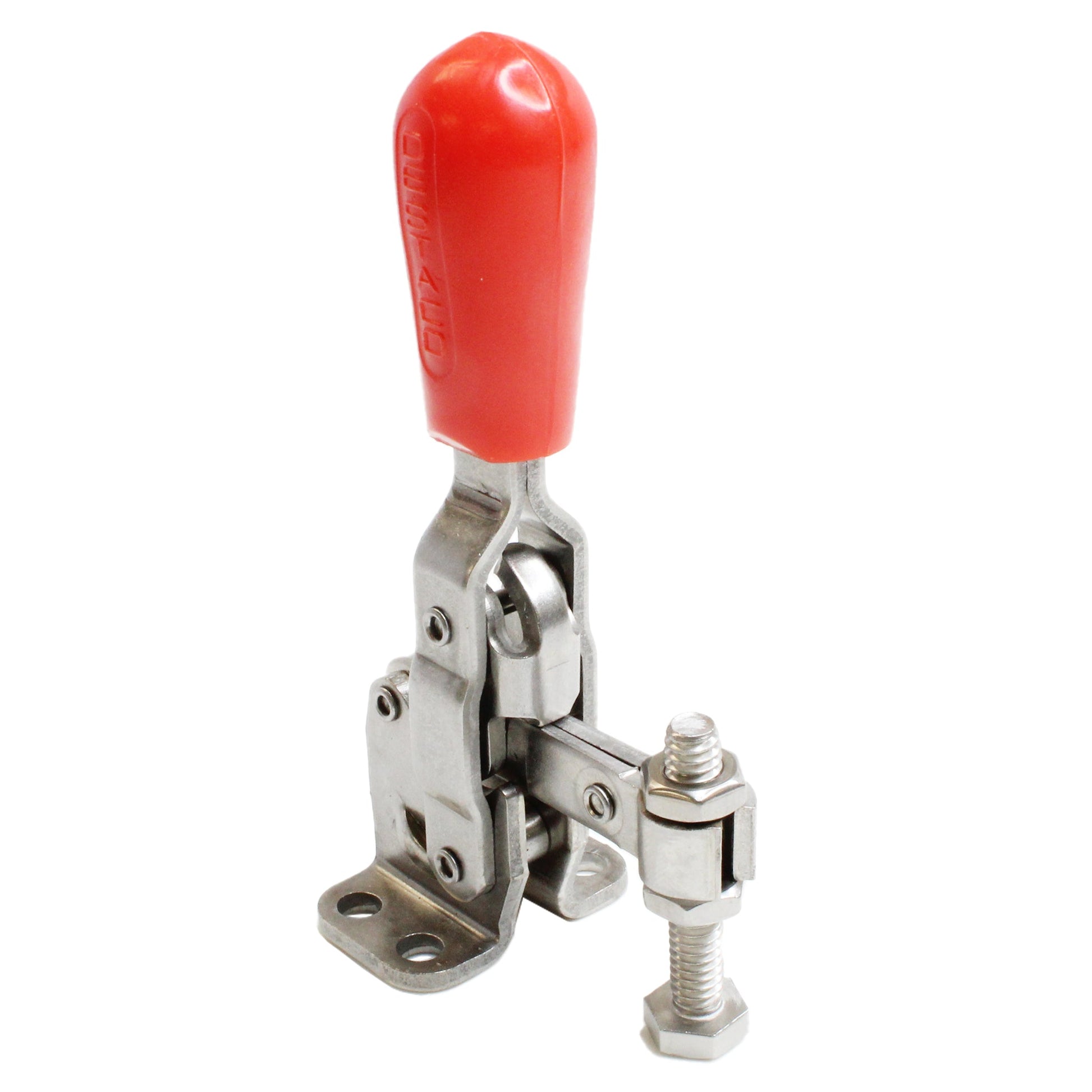

202-SS Vertical Hold-Down Toggle Locking Clamp
Solid bar clamping arm supplied with stainless steel hex head spindle
Maximum Holding Capacity (N): 1,110
Maximum Holding Capacity (lbsf): 250
Clamp Arm Length (mm): 33.3
Clamp Arm Length (in): 1.310
Height Under Clamp Arm (mm): 23.6
Height Under Clamp Arm (in): 0.930
Clamp Bar Opening (+10°) (degrees): 105
Handle Opening (+10°): 65
Standard Material: Stainless Steel
Toggle Lock Plus: No
Accommodates Workpiece Variation: No
Base Mounting Style: Flange
Clamp Arm Style: Solid Bar
Handle: Vertical
Service Environment: Normal
Duty Cycle: 1
Product Type: Stainless Steel
Weight: 0.15kg [0.33lbs]
Application: Welding: Poor/Low, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Not Recommended, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium
Specifications
Handle :
VerticalDuty Cycle :
1Weight (lb) :
0.33Product Type :
StandardProduct Series :
202Clamp Arm Style :
Solid BarDistributorGroup :
Workholding (Manual, Power and Hydraulic Clamps)Product Function :
ClampingToggle Lock Plus :
NoStandard Material :
Stainless SteelBase Mounting Style :
FlangeService Environment :
NormalApplication - Welding :
Poor/LowClamp Arm Length (in) :
1.31Application - Assembly :
Excellent/HighApplication - Closures :
Excellent/HighHandle Opening (+10°) :
65Application - Machining :
Not RecommendedApplication - Wood-Working :
Excellent/HighHeight Under Clamp Arm (in) :
0.93Application - Food Processing :
Fair/MediumMaximum Holding Capacity (lbf) :
250Accomodates Workpiece Variation :
NoApplication - Checking Fixtures :
Excellent/HighClamp Bar Opening (+10°) (degrees) :
105Downloads
