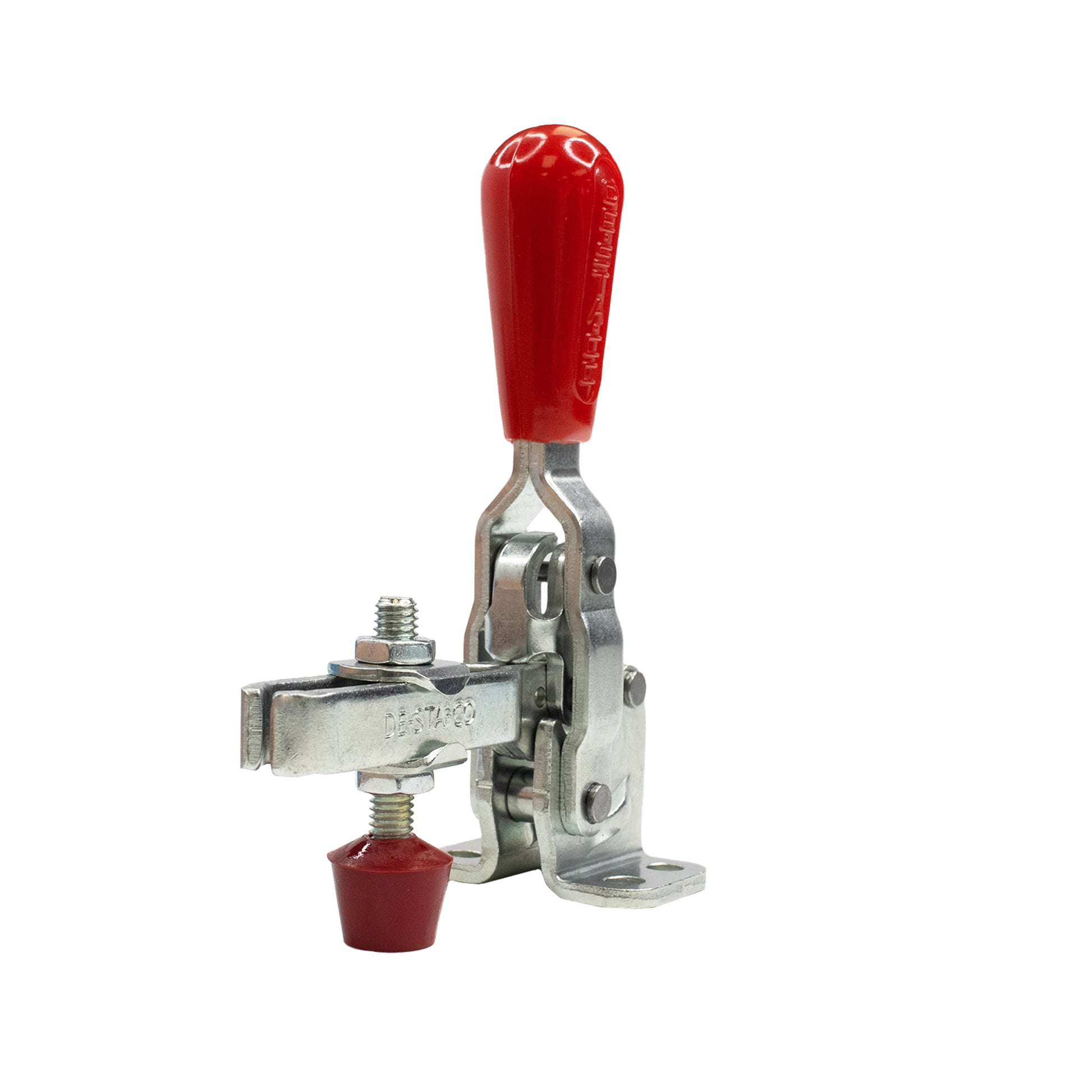

Destaco 202-UL | Vertical Hold-Down Toggle Locking Clamp
Product Details
In Stock: 35
Couldn't load pickup availability
Description
202-UL Vertical Hold-Down Toggle Locking Clamp
• Model No.: 202-UL
• Maximum Holding Capacity (N): 890
• Maximum Holding Capacity (lbsf): 200
• Clamp Arm Length (mm): 58.2
• Clamp Arm Length (in): 2.290
• Height Under Clamp Arm (mm): 23.4
• Height Under Clamp Arm (in): 0.920
• Clamp Bar Opening (+10°) (degrees): 105
• Handle Opening (+10°): 65
• Standard Material: Steel
• Toggle Lock Plus: No
• Accommodates Workpiece Variation: No
• Base Mounting Style: Flange
• Clamp Arm Style: Long U-Bar
• Handle: Vertical
• Service Environment: Normal
• Duty Cycle: 1
• Product Type: Standard
• Holding Force: 1.100: N
• Angle: 105°
• Standard Equipment: 202208-M
• Weight: 0.16kg (0.35lb)
Additional Features:
• Supplied with neoprene spindle
• Ergonomic handle grip included
Applications: Welding: Poor/Low, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Not Recommended, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium
Specifications
Handle :
VerticalDuty Cycle :
1Weight (lb) :
0.35Product Type :
StandardProduct Series :
202Clamp Arm Style :
Open U-BarDistributorGroup :
Workholding (Manual, Power and Hydraulic Clamps)Product Function :
ClampingToggle Lock Plus :
NoStandard Material :
SteelBase Mounting Style :
FlangeService Environment :
NormalApplication - Welding :
Poor/LowClamp Arm Length (in) :
1.5Application - Assembly :
Excellent/HighApplication - Closures :
Excellent/HighHandle Opening (+10°) :
65Application - Machining :
Not RecommendedApplication - Wood-Working :
Excellent/HighHeight Under Clamp Arm (in) :
0.92Application - Food Processing :
Fair/MediumMaximum Holding Capacity (lbf) :
200Accomodates Workpiece Variation :
NoApplication - Checking Fixtures :
Excellent/HighClamp Bar Opening (+10°) (degrees) :
105Downloads
