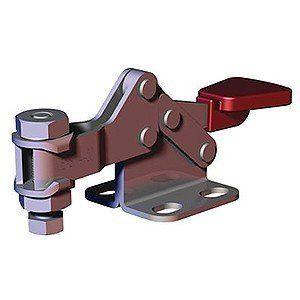

Destaco 205-SL Horizontal Hold-Down Toggle Locking Clamp

  • Destaco 205-SL Horizontal Hold-Down Toggle Locking Clamp

Product Details

SKU
205-SL
Vendor
Destaco
Inventory

In Stock: 17

$19.71 USD
$18.77 USD MSRP $19.71 USD

Description

205-SL Horizontal Hold-Down Toggle Locking Clamp

  • Supplied with neoprene spindle assembly.
  • Solid clamp arm
  • Part No.: 205-SL
  • Maximum Holding Capacity (N): 270
  • Maximum Holding Capacity (lbsf): 60
  • Clamp Arm Length (mm): 22.4
  • Clamp Arm Length (in): 0.880
  • Height Under Clamp Arm (mm): 9.8
  • Height Under Clamp Arm (in): 0.390
  • Clamp Bar Opening (+10°) (degrees): 94
  • Handle Opening (+10°): 82
  • Available: Upon Request
  • Standard Material: Steel
  • Toggle Lock Plus: No
  • Accommodates Workpiece Variation: No
  • Base Mounting Style: Flange, left
  • Clamp Arm Style: Solid Bar
  • Handle: Horizontal
  • Service Environment: Normal
  • Duty Cycle: 2
  • Product Type: Standard
  • Weight (kg): 0.03 (0.07 lb)
Application: Welding: Poor/Low, Assembly: Excellent/High, CheckingFixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium

Specifications

Handle :

Horizonal

Duty Cycle :

2

Weight (lb) :

0.07

Product Type :

Standard

Product Series :

205

Clamp Arm Style :

Solid Bar

DistributorGroup :

Workholding (Manual, Power and Hydraulic Clamps)

Product Function :

Clamping

Spindle Assembly :

205208-M

Toggle Lock Plus :

No

Standard Material :

Steel

Base Mounting Style :

Flange, left

Service Environment :

Normal

Application - Welding :

Poor/Low

Clamp Arm Length (in) :

0.88

Application - Assembly :

Excellent/High

Application - Closures :

Excellent/High

Handle Opening (+10°) :

82

Application - Machining :

Poor/Low

Application - Wood-Working :

Excellent/High

Height Under Clamp Arm (in) :

0.39

Application - Food Processing :

Fair/Medium

Maximum Holding Capacity (lbf) :

60

Accomodates Workpiece Variation :

No

Application - Checking Fixtures :

Excellent/High

Clamp Bar Opening (+10°) (degrees) :

94
