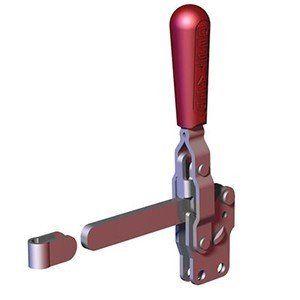

Destaco 207-LB Vertical Hold-Down Toggle Locking Clamp

  • Destaco 207-LB Vertical Hold-Down Toggle Locking Clamp

Product Details

SKU
207-LB
Vendor
Destaco
Inventory

In Stock: 2

$27.64 USD
$26.18 USD MSRP $27.64 USD

Description

207-LB Vertical Hold-Down Toggle Locking Clamp

  • Supplied with neoprene spindle
  • Ergonomic handle grip included
  • Model no.: 207-LB
  • Maximum Holding Capacity (N): 2,220
  • Maximum Holding Capacity (lbsf): 500
  • Clamp Arm Length (mm): 88.4
  • Clamp Arm Length (in): 3.480
  • Height Under Clamp Arm (mm): 39.6
  • Height Under Clamp Arm (in): 1.560
  • Clamp Bar Opening (+10°) (degrees): 99
  • Handle Opening (+10°): 57
  • Available: Yes
  • Standard Material: Steel
  • Toggle Lock Plus: No
  • Accommodates Workpiece Variation: No
  • Base Mounting Style: Straight
  • Clamp Arm Style: Long Solid Bar
  • Handle: Vertical
  • Service Environment: Normal
  • Duty Cycle: 2
  • Product Type: Standard
  • Holding force: 2000: N
  • Angle: 100°
  • Weight (kg): 0.34 (0.75 lb)
Additional Features:
  • Supplied with neoprene spindle
  • Ergonomic handle grip included
Application: Welding: Poor/Low, Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium

Specifications

Handle :

Vertical

Duty Cycle :

2

Weight (lb) :

0.75

Product Type :

Standard

Bolt Retainer :

207105

Product Series :

207

DistributorGroup :

Workholding (Manual, Power and Hydraulic Clamps)

Product Function :

Clamping

Toggle Lock Plus :

No

Standard Material :

Steel

Base Mounting Style :

Straight

Service Environment :

Normal

Clamp Arm Style Long :

Solid Bar

Application - Welding :

Poor/Low

Clamp Arm Length (in) :

3.48

Application - Assembly :

Excellent/High

Application - Closures :

Excellent/High

Handle Opening (+10°) :

57

Application - Machining :

Poor/Low

Application - Wood-Working :

Excellent/High

Height Under Clamp Arm (in) :

1.56

Application - Food Processing :

Fair/Medium

Maximum Holding Capacity (lbf) :

500

Accomodates Workpiece Variation :

No

Application - Checking Fixtures :

Excellent/High

Clamp Bar Opening (+10°) (degrees) :

99
