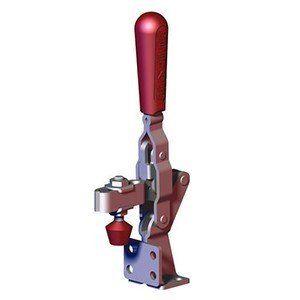

Destaco 207-UF Vertical Hold-Down Toggle Locking Clamp

  • Destaco 207-UF Vertical Hold-Down Toggle Locking Clamp

Product Details

SKU
207-UF
Vendor
Destaco

$81.91 USD
$78.35 USD MSRP $81.91 USD

Description

207-UF Vertical Hold-Down Toggle Locking Clamp

  • Model No.: 207-UF
  • Maxmum Holding Capacity (N): 1,670
  • Maximum Holding Capacity (lbsf): 375
  • Clamp Arm Length (mm): 47.2
  • Clamp Arm Length (in): 1.860
  • Height Under Clamp Arm (mm): 68.1
  • Height Under Clamp Arm (in): 2.680
  • Clamp Bar Opening (+10°) (degrees): 96
  • Handle Opening (+10°): 56
  • Available: Upon Request
  • Standard Material: Steel
  • Toggle Lock Plus: No
  • Accommodates Workpiece Variation: No
  • Base Mounting Style: Dual
  • Clamp Arm Style: U-Bar
  • Handle: Vertical
  • Service Environment: Normal
  • Duty Cycle: 2
  • Product Type: Standard
  • EDP No.: 0
  • Handle Moves: 56°
  • Bar Opens: 96°
  • Weight (kg): 0.43
  • Weight (lb): 0.95
Additional Features:
  • Supplied with neoprene spindle
  • Ergonomic handle grip included
Application: Welding: Poor/Low, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium

Specifications

Handle :

Vertical

Duty Cycle :

2

Weight (lb) :

0.95

Product Type :

Standard

Product Series :

207

Clamp Arm Style :

U-Bar

Flanged Washers :

507107

DistributorGroup :

Workholding (Manual, Power and Hydraulic Clamps)

Product Function :

Clamping

Spindle Assembly :

225208-M

Toggle Lock Plus :

No

Standard Material :

Steel

Base Mounting Style :

Dual

Service Environment :

Normal

Application - Welding :

Poor/Low

Clamp Arm Length (in) :

1.86

Application - Assembly :

Excellent/High

Application - Closures :

Excellent/High

Handle Opening (+10°) :

56

Application - Machining :

Poor/Low

Application - Wood-Working :

Excellent/High

Height Under Clamp Arm (in) :

2.68

Application - Food Processing :

Fair/Medium

Maximum Holding Capacity (lbf) :

375

Accomodates Workpiece Variation :

No

Application - Checking Fixtures :

Excellent/High

Clamp Bar Opening (+10°) (degrees) :

96
