Destaco 207-UL | Vertical Hold-Down Toggle Locking Clamp

Destaco DES-207-UL - Destaco Vertical Hold Down Clamp
Product images are for illustrative purposes only and may differ from the actual product.

Product Information

SKU
207-UL
Vendor
Destaco
Inventory

Product Summary

Destaco

$21.10 USD
$21.10 USD MSRP $21.10 USD
Shipping calculated at checkout.
Product Details

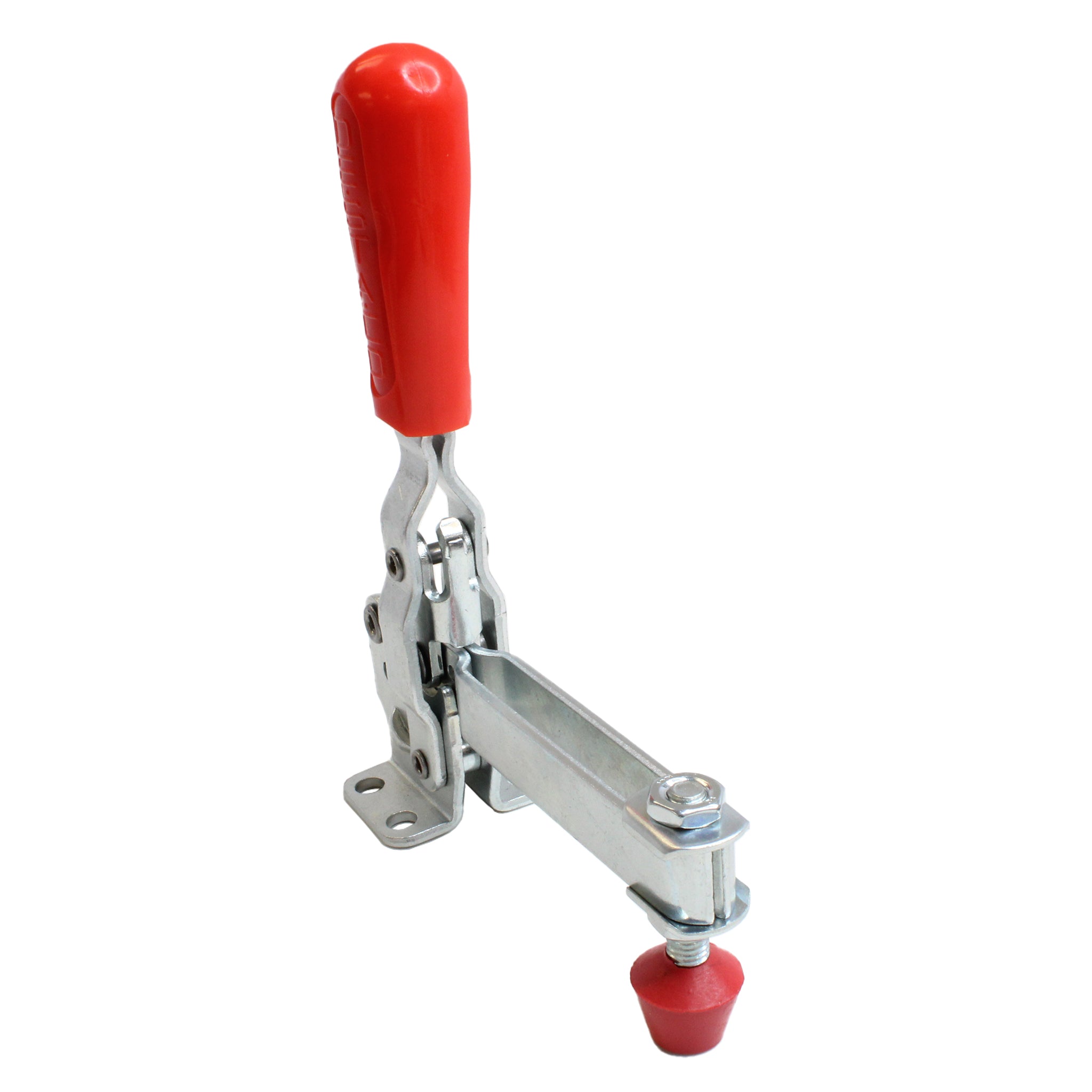

207-UL Vertical Hold-Down Toggle Locking Clamp

Model No.: 207-UL
Maximum Holding Capacity (N): 1,670
Maximum Holding Capacity (lbsf): 375
Clamp Arm Length (mm): 54.4
Clamp Arm Length (in): 3.850
Height Under Clamp Arm (mm): 31.8
Height Under Clamp Arm (in): 1.250
Clamp Bar Opening (+10°) (degrees): 99
Handle Opening (+10°): 57
Standard Material: Steel
Toggle Lock Plus: No
Accommodates Workpiece Variation: No
Base Mounting Style: Flange
Clamp Arm Style: Long U-Bar
Handle: Vertical
Service Environment: Normal
Duty Cycle: 2
Product Type: Standard
Holding Force: 1.700: N
Angle: 100°
Standard Equipment: 225208-M
Weight (kg): 0.30 (0.66 lb)


Additional Features:
Supplied with neoprene spindle
Ergonomic handle grip included

Application: Welding: Poor/Low, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium
