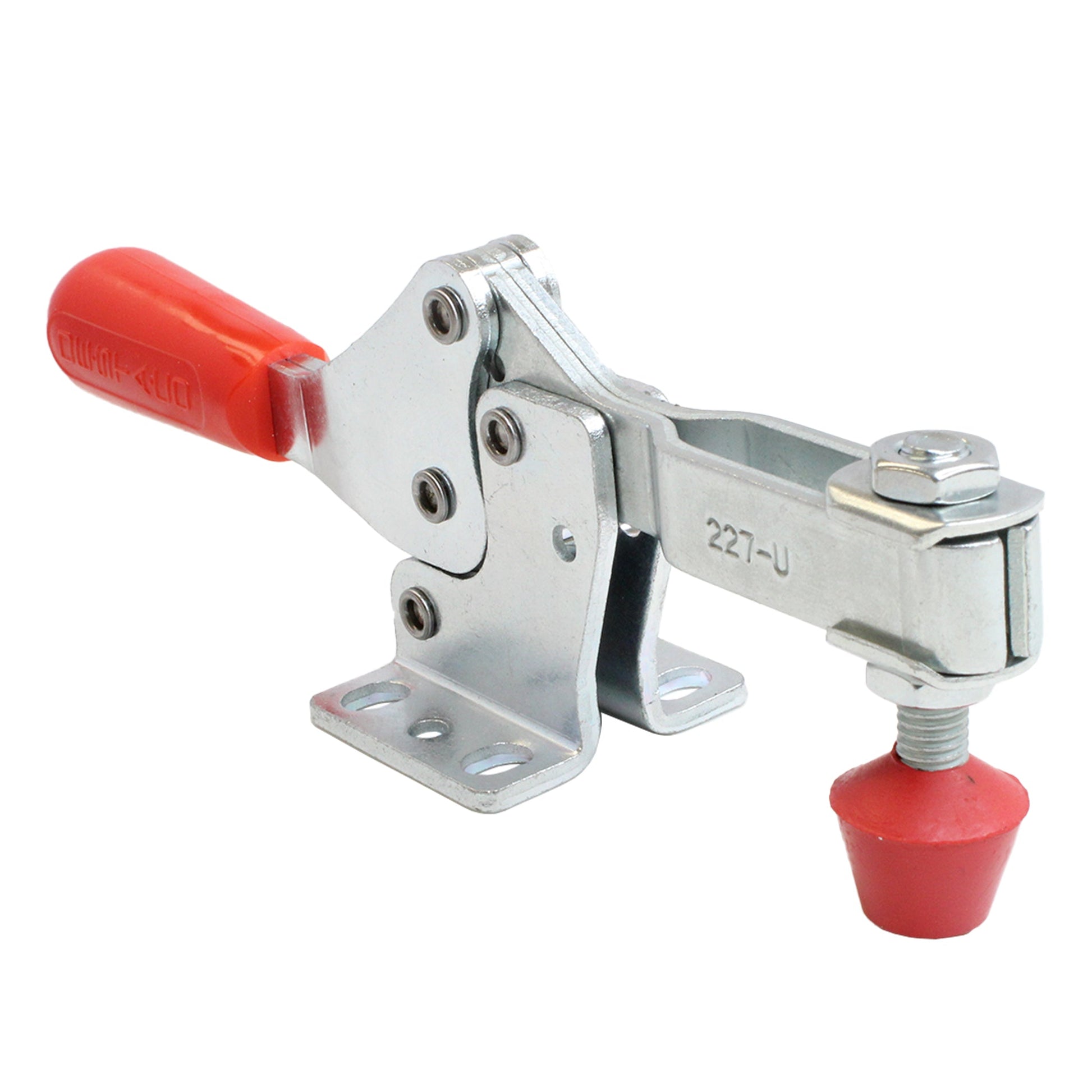

Destaco 227-U Horizontal Hold-Down Toggle Locking Clamp

  • Destaco 227-U Horizontal Hold-Down Toggle Locking Clamp

Product Details

SKU
227-U
Vendor
Destaco
Inventory

In Stock: 25

$22.60 USD
$21.72 USD MSRP $22.60 USD

Description

227-U Horizontal Hold-Down Toggle Locking Clamp

  • Model no.: 227-U
  • Maximum Holding Capacity (N): 2,220
  • Maximum Holding Capacity (lbsf): 500
  • Clamp Arm Length (mm): 67.3
  • Clamp Arm Length (in): 2.650
  • Height Under Clamp Arm (mm): 31.8
  • Height Under Clamp Arm (in): 1.250
  • Clamp Bar Opening (+10°) (degrees): 91
  • Handle Opening (+10°): 56
  • Standard Material: Steel
  • Toggle Lock Plus: No
  • Accommodates Workpiece Variation: No
  • Base Mounting Style: Flange
  • Clamp Arm Style: U-Bar
  • Handle: Horizontal
  • Service Environment: Normal
  • Duty Cycle: 2
  • Product Type: Standard
  • Holding Force: 2200: N
  • Angle: 90°
  • Standard Equipment: 225208-M
  • Weight (kg): 0.31 (0.68 lb)
Additional Features:
  • Large handle clearance in open position
  • Clamp supplied with neoprene spindle
  • Low profile
Application: Welding: Fair/Medium, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium

Specifications

Handle :

Horizonal

Duty Cycle :

2

Weight (lb) :

0.68

Handle Color :

Red

Product Type :

Standard

Product Series :

227

Clamp Arm Style :

U-Bar

Flanged Washers :

507107

DistributorGroup :

Workholding (Manual, Power and Hydraulic Clamps)

Product Function :

Clamping

Spindle Assembly :

225208-M

Toggle Lock Plus :

No

Standard Material :

Steel

Base Mounting Style :

Flange

Service Environment :

Normal

Application - Welding :

Fair/Medium

Clamp Arm Length (in) :

2.65

Application - Assembly :

Excellent/High

Application - Closures :

Excellent/High

Handle Opening (+10°) :

56.0

Application - Machining :

Poor/Low

Application - Wood-Working :

Excellent/High

Height Under Clamp Arm (in) :

1.25

Application - Food Processing :

Fair/Medium

Maximum Holding Capacity (lbf) :

500.0

Accomodates Workpiece Variation :

No

Application - Checking Fixtures :

Excellent/High

Clamp Bar Opening (+10°) (degrees) :

91.0
