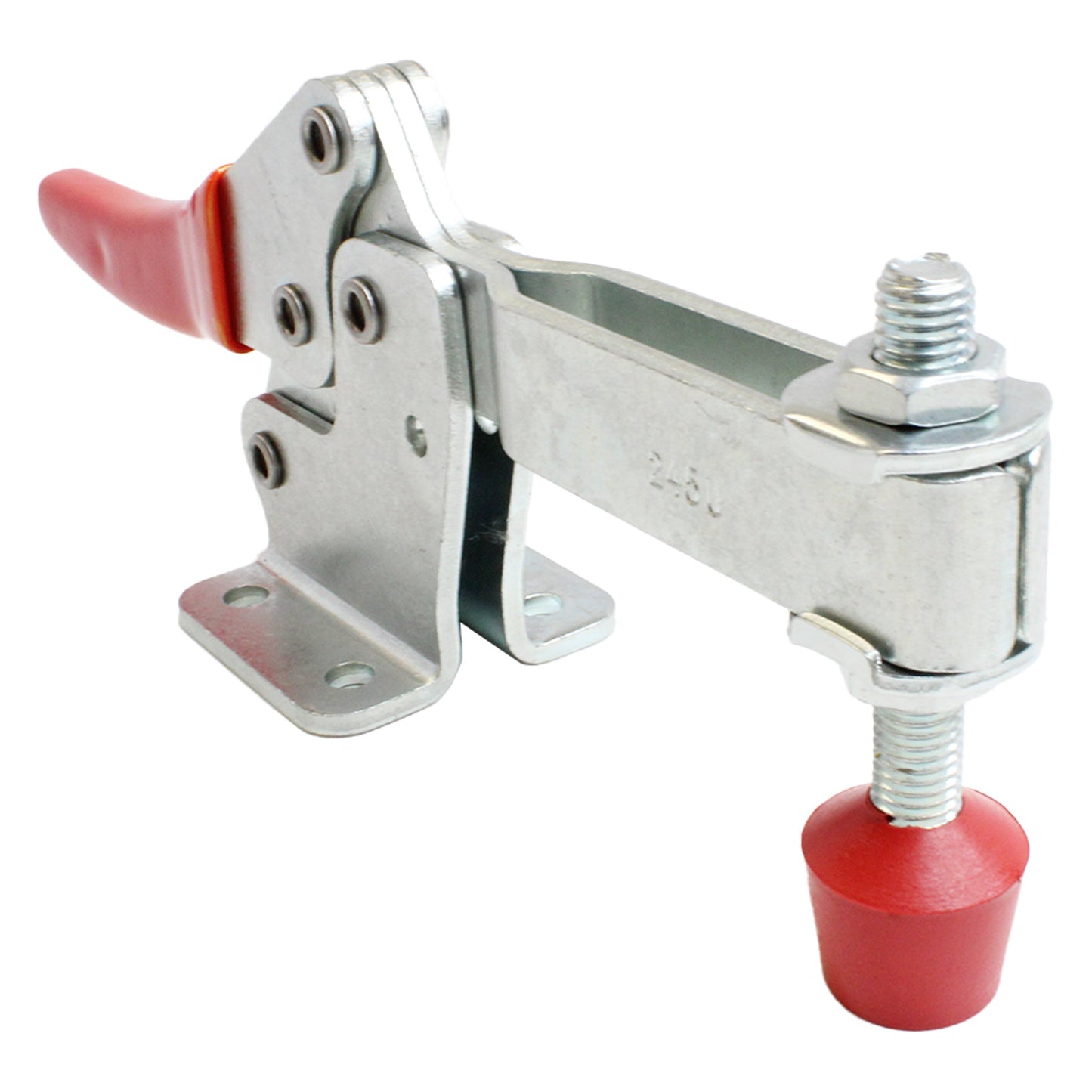

Destaco 245-U Horizontal Hold-Down Toggle Locking Clamp

  • Destaco 245-U Horizontal Hold-Down Toggle Locking Clamp

Product Details

SKU
245-U
Vendor
Destaco
Inventory

In Stock: 33

$65.04 USD
$61.91 USD MSRP $65.04 USD

Description

245-U Horizontal Hold-Down Toggle Locking Clamp

  • Model no.: 245-U
  • Maximum Holding Capacity (N): 4,450
  • Maximum Holding Capacity (lbsf): 1,000
  • Clamp Arm Length (mm): 124.0
  • Clamp Arm Length (in): 4.880
  • Height Under Clamp Arm (mm): 55.6
  • Height Under Clamp Arm (in): 2.190
  • Clamp Bar Opening (+10°) (degrees): 105
  • Handle Opening (+10°): 74
  • Standard Material: Steel
  • Toggle Lock Plus: No
  • Accommodates Workpiece Variation: No
  • Base Mounting Style: Flange
  • Clamp Arm Style: U-Bar
  • Handle: Horizontal
  • Service Environment: Normal
  • Duty Cycle: 2
  • Product Type: Standard
  • Model no.: 245-U
  • Holding force: 4500: N
  • Angle: 105°
  • Standard equipment: 247208-M
  • Weight (kg): 1.32 (2.91 lb)

Additional Features:

  • Large handle clearance in open position
  • Clamp supplied with neoprene spindle
  • Low profile
Application: Welding: Fair/Medium, Assembly: Excellent/High, Checking Fixtures: Fair/Medium, Machining: Fair/Medium, Wood-Working: Excellent/High, Closures: Fair/Medium, Food Processing: Not Recommended

Specifications

Handle :

Horizonal

Duty Cycle :

2

Weight (lb) :

2.91

Product Type :

Standard

Product Series :

245

Clamp Arm Style :

U-Bar

Flanged Washers :

247109

DistributorGroup :

Workholding (Manual, Power and Hydraulic Clamps)

Product Function :

Clamping

Spindle Assembly :

247208-M

Toggle Lock Plus :

No

Standard Material :

Steel

Base Mounting Style :

Flange

Service Environment :

Normal

Application - Welding :

Fair/Medium

Clamp Arm Length (in) :

4.88

Application - Assembly :

Excellent/High

Application - Closures :

Fair/Medium

Handle Opening (+10°) :

74

Application - Machining :

Fair/Medium

Application - Wood-Working :

Excellent/High

Height Under Clamp Arm (in) :

2.19

Application - Food Processing :

Not Recommended

Maximum Holding Capacity (lbf) :

1000

Accomodates Workpiece Variation :

No

Application - Checking Fixtures :

Fair/Medium

Clamp Bar Opening (+10°) (degrees) :

105
