Destaco 305-USS | Horizontal Hold-Down Toggle Locking Clamp

  • Destaco 305-USS | Horizontal Hold-Down Toggle Locking Clamp

Product Details

SKU
305-USS
Vendor
Destaco

Regular price $32.19 USD
Sale price Regular price $30.64 USD MSRP Unit price $32.19 USD

Description

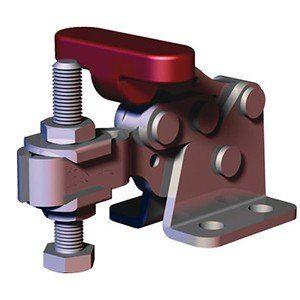

305-USS Horizontal Hold-Down Toggle Locking Clamp

Stainless steel design
U-Bar clamping arm with stainless steel hex head spindle
Compact design for confined spaces
Model No.: 305-USS
Maximum Holding Capacity (N): 900
Maximum Holding Capacity (lbsf): 200
Clamp Arm Length (mm): 30.5
Clamp Arm Length (in): 1.200
Height Under Clamp Arm (mm): 12.2
Height Under Clamp Arm (in): 0.480
Clamp Bar Opening (+10°) (degrees): 90
Handle Opening (+10°): 170
Standard Material: Stainless Steel
Toggle Lock Plus: No
Accommodates Workpiece Variation: No
Base Mounting Style: Flange
Clamp Arm Style: U-Bar
Handle: Horizontal
Service Environment: Normal
Duty Cycle: 2
Product Type: Stainless Steel
EDP No.: 53059
Handle Moves: 175°
Bar Opens: 92°
Flanged Washer: 102911
Spindle Assembly: 305908
Weight (kg): 0.06 (0.13 lb)

Additional Features:
Stainless steel design
U-Bar clamping arm with stainless steel hex head spindle
Compact design for confined spaces

Application: Welding: Poor/Low, Assembly: Excellent/High, Checking Fixtures: Fair/Medium, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium

Specifications

Handle :

Horizonal

Duty Cycle :

2

Weight (lb) :

0.13

Product Type :

Horizontal Hold-Down Clamps

Product Series :

305/307/309

Clamp Arm Style :

U-Bar

Flanged Washers :

102911

DistributorGroup :

Workholding (Manual, Power and Hydraulic Clamps)

Product Function :

Clamping

Spindle Assembly :

201943

Toggle Lock Plus :

No

Standard Material :

Stainless Steel

Base Mounting Style :

Flange

Service Environment :

Normal

Application - Welding :

Poor/Low

Clamp Arm Length (in) :

1.2

Application - Assembly :

Excellent/High

Application - Closures :

Excellent/High

Handle Opening (+10°) :

170

Application - Machining :

Poor/Low

Application - Wood-Working :

Excellent/High

Height Under Clamp Arm (in) :

0.48

Application - Food Processing :

Fair/Medium

Maximum Holding Capacity (lbf) :

200

Accomodates Workpiece Variation :

No

Application - Checking Fixtures :

Fair/Medium

Clamp Bar Opening (+10°) (degrees) :

90
