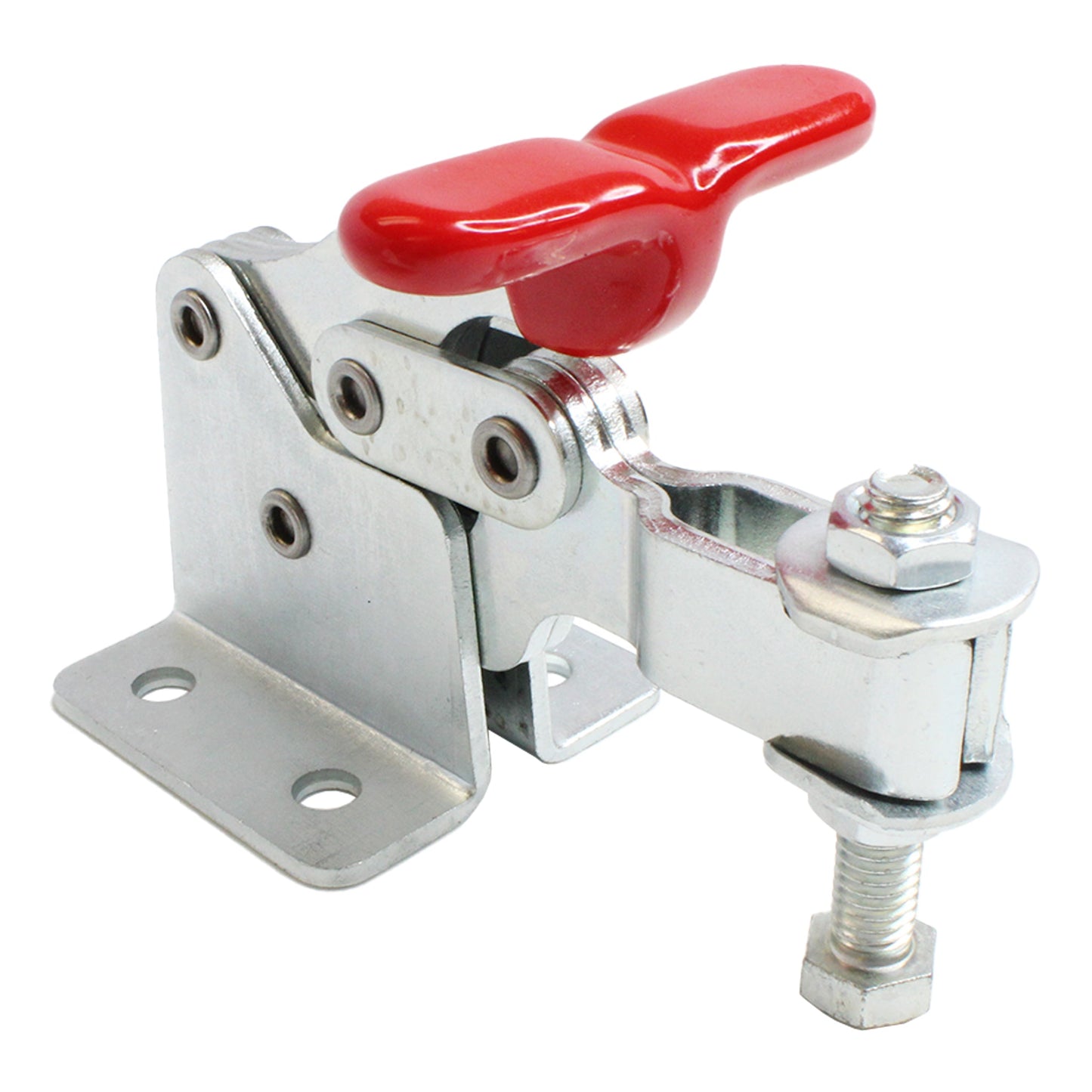

Destaco 309-U Horizontal Hold-Down Toggle Locking Clamp

  • Destaco 309-U Horizontal Hold-Down Toggle Locking Clamp

Product Details

SKU
309-U
Vendor
Destaco

$43.22 USD
$40.36 USD MSRP $43.22 USD

Description

309-U Horizontal Hold-Down Toggle Locking Clamp

  • Model no.: 309-U
  • Maximum Holding Capacity (N): 3,340
  • Maximum Holding Capacity (lbsf): 750
  • Clamp Arm Length (mm): 68.1
  • Clamp Arm Length (in): 2.680
  • Height Under Clamp Arm (mm): 33.3
  • Height Under Clamp Arm (in): 1.310
  • Clamp Bar Opening (+10°) (degrees): 90
  • Handle Opening (+10°): 168
  • Standard Material: Steel
  • Toggle Lock Plus: No
  • Accommodates Workpiece Variation: No
  • Base Mounting Style: Flange
  • Clamp Arm Style: U-Bar
  • Handle: Horizontal
  • Service Environment: Normal
  • Duty Cycle: 2
  • Product Type: Compact
  • Model no.: 309-U
  • Holding force: 3400: N
  • Standard equipment: 309208
  • Weight (kg): 1.30 (2.87 lb)
Additional Features:
  • Up to 150 lb. (670 N) capacity
  • Supplied with neoprene spindle
  • Stainless steel models available
Application: Welding: Fair/Medium, Assembly: Excellent/High, Checking Fixtures: Fair/Medium, Machining: Fair/Medium, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium

Specifications

Handle :

Horizonal

Duty Cycle :

2

Weight (lb) :

2.87

Product Type :

Compact

Product Series :

305/307/309

Clamp Arm Style :

U-Bar

Flanged Washers :

235106

DistributorGroup :

Workholding (Manual, Power and Hydraulic Clamps)

Product Function :

Clamping

Spindle Assembly :

309208

Toggle Lock Plus :

No

Standard Material :

Steel

Base Mounting Style :

Flange

Service Environment :

Normal

Application - Welding :

Fair/Medium

Clamp Arm Length (in) :

2.68

Application - Assembly :

Excellent/High

Application - Closures :

Excellent/High

Handle Opening (+10°) :

168

Application - Machining :

Fair/Medium

Application - Wood-Working :

Excellent/High

Height Under Clamp Arm (in) :

1.31

Application - Food Processing :

Fair/Medium

Maximum Holding Capacity (lbf) :

750

Accomodates Workpiece Variation :

No

Application - Checking Fixtures :

Fair/Medium

Clamp Bar Opening (+10°) (degrees) :

90
