Destaco 317-U | Vertical Hold-Down Toggle Locking Clamp

  • Destaco 317-U | Vertical Hold-Down Toggle Locking Clamp

Product Details

SKU
317-U
Vendor
Destaco
Inventory

In Stock: 17

Regular price $35.19 USD
Sale price Regular price $33.66 USD MSRP Unit price $35.19 USD

Description

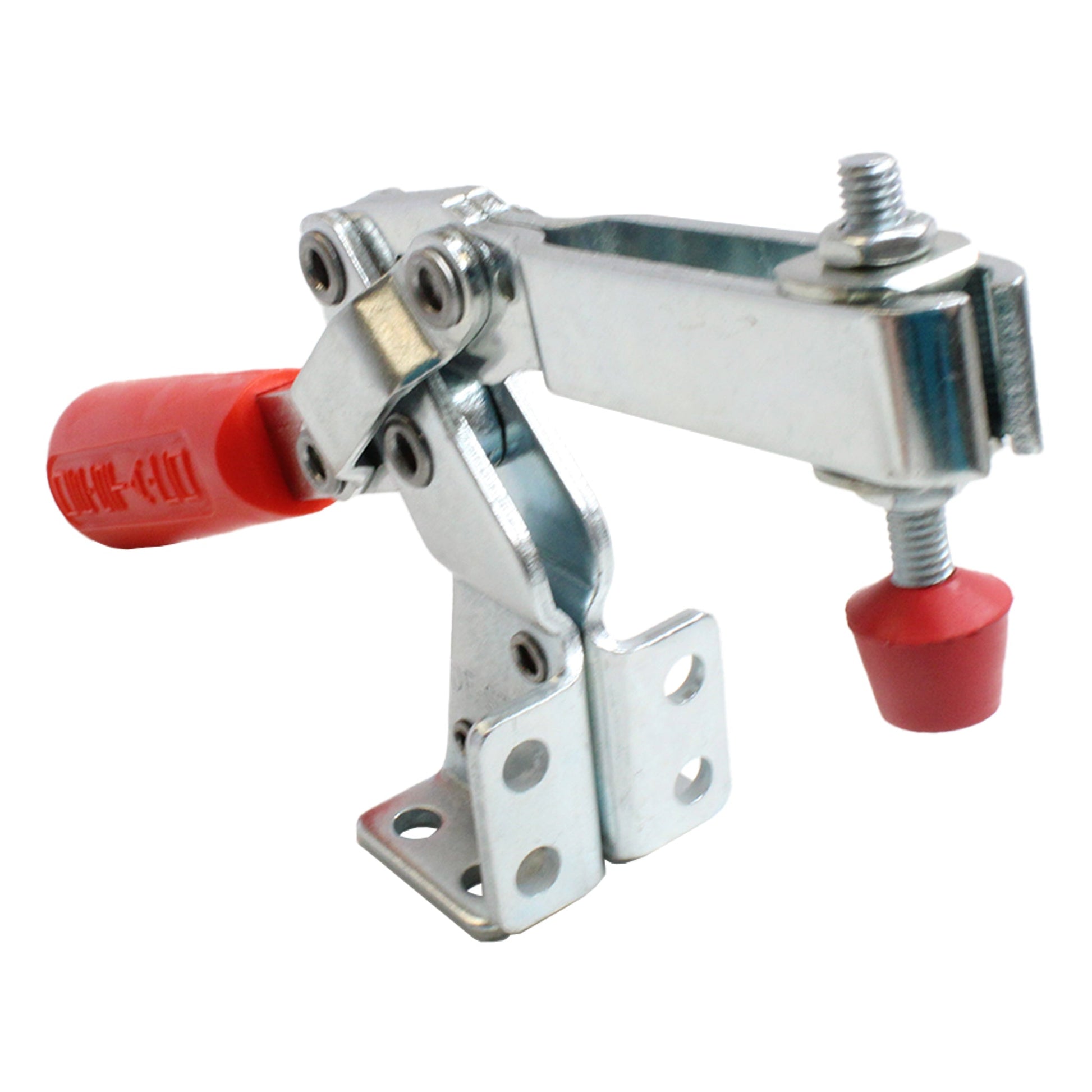

317-U Vertical Hold-Down Toggle Locking Clamp

Model No.: 317-U
Maxmum Holding Capacity (N): 1,670
Maximum Holding Capacity (lbsf): 375
Clamp Arm Length (mm): 64.3
Clamp Arm Length (in): 2.530
Height Under Clamp Arm (mm): 68.1
Height Under Clamp Arm (in): 2.680
Clamp Bar Opening (+10°) (degrees): 185
Handle Opening (+10°): 60
Standard Material: Steel
Toggle Lock Plus: No
Accomodates Workpiece Variation: No
Base Mounting Style Front: Flange
Clamp Arm Style: U-Bar
Handle: Vertical
Service Environment: Normal
Duty Cycle: 2
Product Type: Standard
EDP No.: 53170
Handle Moves: 60°
Bar Opens: 185°
Weight (kg): 0.34 (0.75 lb)

Additional Features;
Dual mounting surfaces
Large bar opening angle
Supplied with neoprene spindle

Application: Welding: Poor/Low, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium

Specifications

Handle :

Vertical

Duty Cycle :

2

Weight (lb) :

0.75

Product Type :

Standard

PublishedDate :

1675372882000

Product Series :

317

Clamp Arm Style :

U-Bar

Flanged Washers :

507107

DistributorGroup :

Workholding (Manual, Power and Hydraulic Clamps)

Product Function :

Clamping

Spindle Assembly :

507208-M

Toggle Lock Plus :

No

Standard Material :

Steel

Base Mounting Style :

Front Flange

Service Environment :

Normal

Application - Welding :

Poor/Low

Clamp Arm Length (in) :

2.53

Application - Assembly :

Excellent/High

Application - Closures :

Excellent/High

Handle Opening (+10°) :

60.0

Application - Machining :

Poor/Low

Application - Wood-Working :

Excellent/High

Height Under Clamp Arm (in) :

2.68

Application - Food Processing :

Fair/Medium

Maximum Holding Capacity (lbf) :

375.0

Accomodates Workpiece Variation :

No

Application - Checking Fixtures :

Excellent/High

Clamp Bar Opening (+10°) (degrees) :

185.0
