Destaco 323-SS-M-50 | Pull-Action Latch Clamp With 50MM Longer Hook
Product Information
Product Summary
Destaco

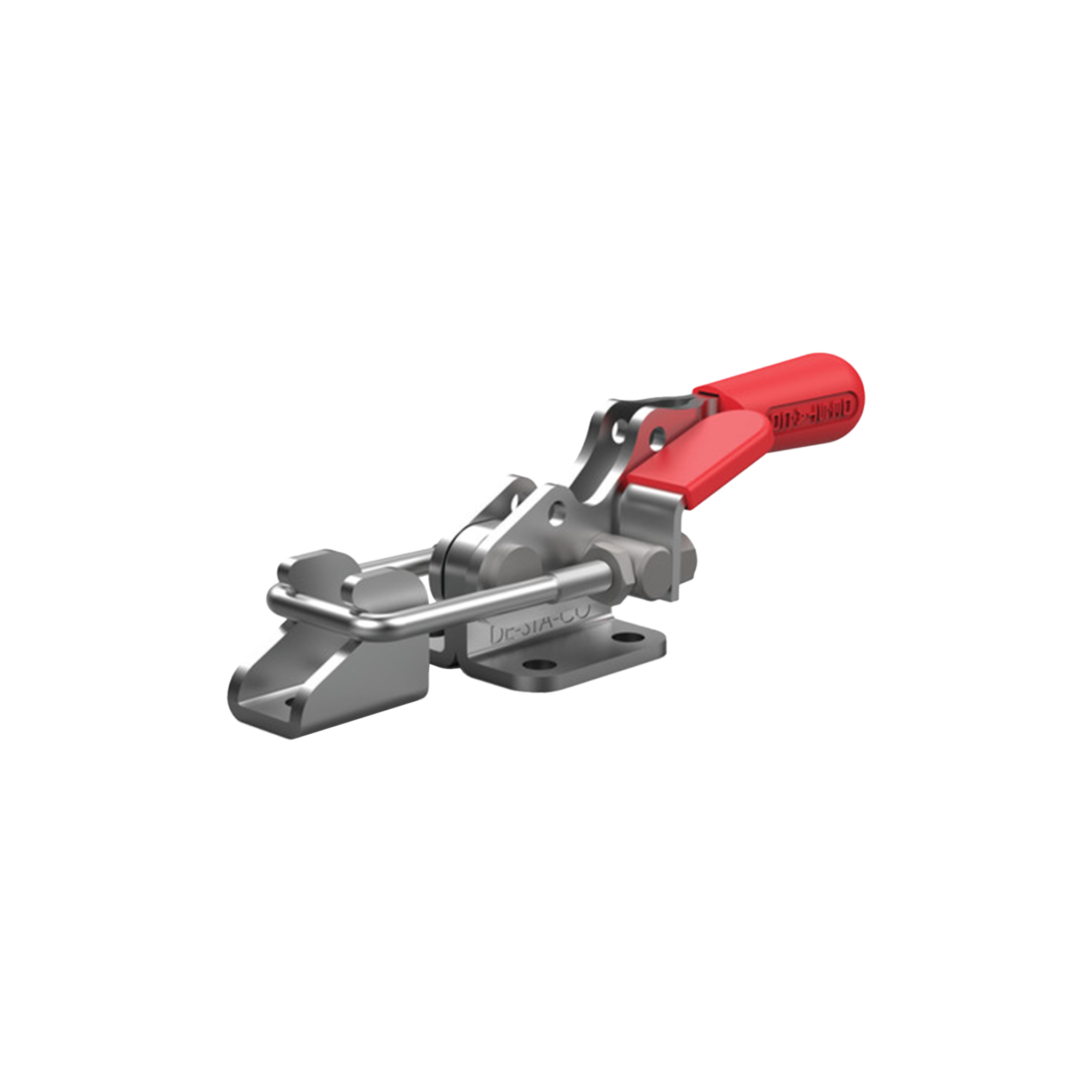

Destaco 323-SS-M-50 | Pull-Action Latch Clamp With 50MM Longer Hook
The Destaco 323-SS-M-50 Pull-Action Latch Clamp is made from durable, stainless steel and comes with threaded U-hooks for easy adjustment. It features a 50 mm longer hook, a latch plate that is included, a drawing movement without thumb control of 1.18 in, a max hook adjustment of 0.49 in, a maximum holding capacity of 360 lbf, and a weight of 0.15 lb. It has an adjustable range of 10.7, an exerting force to applied force ratio of 27:1, and a base mounting style of a flange.
Product Details:
Stainless Steel
Supplied with threaded U-hooks for easy adjustment
Latch plate included
50MM Longer Hook
Base Mounting Style: Flange
Distributor Group: Workholding (Manual, Power and Hydraulic Clamps)
Drawing Movement without Thumb Control (in): 1.18
Ef:Af Exerting Force: Applied Force ((pushing/pulling)): 27:1
Hook Adjustable Range: 10.7
Hook Type: U-Hook (Horizontal)
Latch Plate Supplied?: Yes
Latch Plate: 323104-MSS
Max Hook Adjustment (in): 0.49
Maximum Holding Capacity (lbf): 360.0
Product Function: Clamping
Product Series: 323/331/341
Product Type: Pull-Action Latch Clamps
Product Type: Standard
Published Date: 1673986334000
Replacement Hook Assembly: 23915
Standard Material: Stainless Steel
Toggle Lock Plus: No
Weight (lb): 0.15
