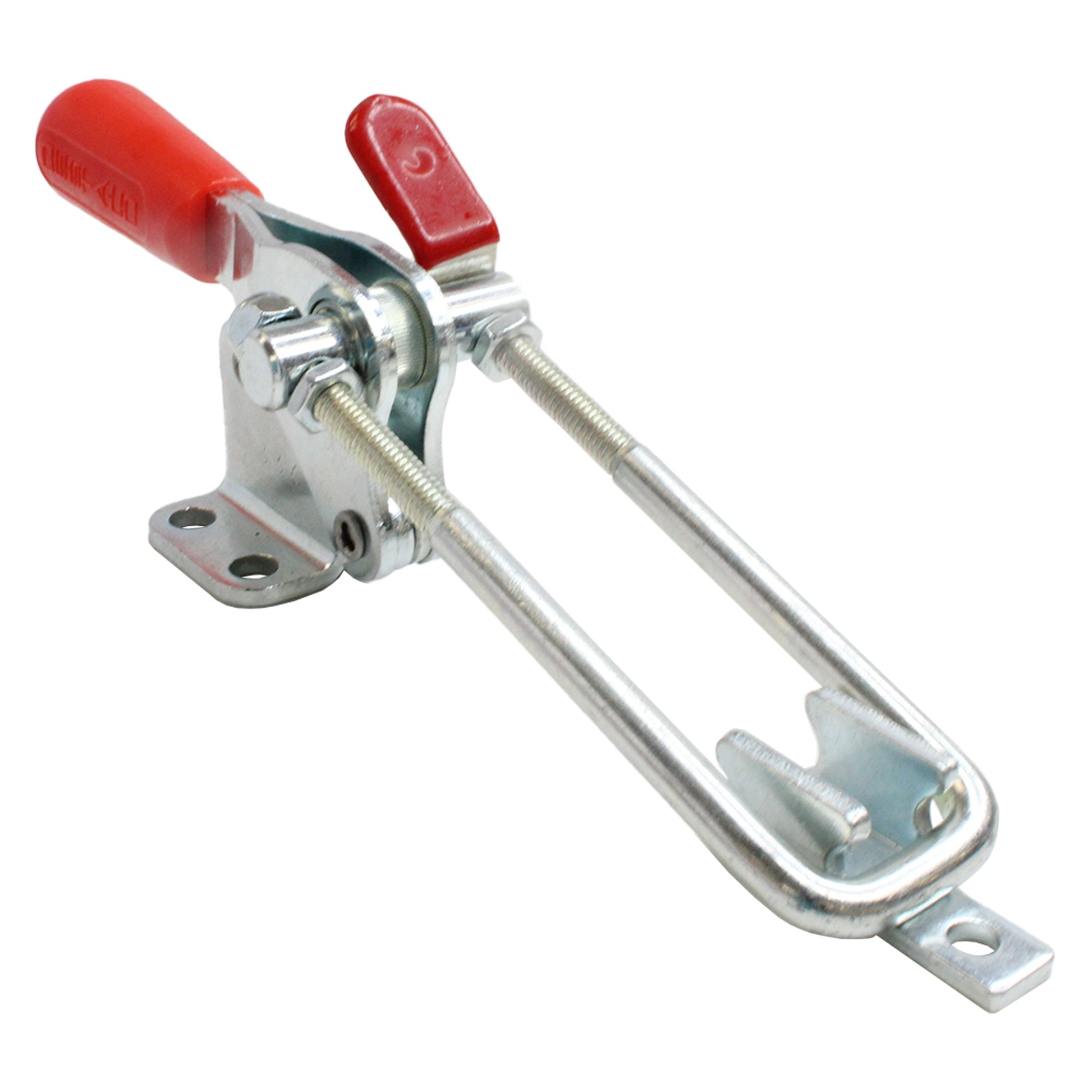

Destaco 334 Vertical Pull Action Latch Clamp

SKU#: 334

Vendor: Destaco

Vertical Pull Action Latch Clamp
Maximum Holding Capacity: 1000 (lbsf)
Manufacture No.: 334

334 Vertical Pull Action Latch Clamp

•Model No.: 334
•Maximum Holding Capacity (N): 4,450
•Maximum Holding Capacity (lbsf): 1,000
•Drawing Movement (mm): 51.7
•Drawing Movement (in): 2.030
•Hook Adjustable Range (mm): 19.3
•Max Hook Adjustment (in): 0.800
•Ef:Af Exerting Force: Applied Force ((pushing/pulling)): 31:1
•Standard Material: Steel
•Toggle Lock Plus: No
•Base Mounting Style: Flange
•Drawing Movement (mm): 51.7
•Hook Type: U-Hook (Vertical)
•Latch Plate: 334101
•Latch Plate Supplied?: Yes
•Replacement Hook Assembly: 334215
•Product Type: Standard
•Thread: M6x1.0
•Overall Hook Length: 109.5mm
•Overall Hook Length: 4.31INCH
•Weight: 0.27kg (0.60lb)


Additional Features:

•Supplied with threaded U-hooks for easy adjustment
•Latch plate included
•Patented Thumb Control Lever provides one-handed operation
•Optional hook lengths available
