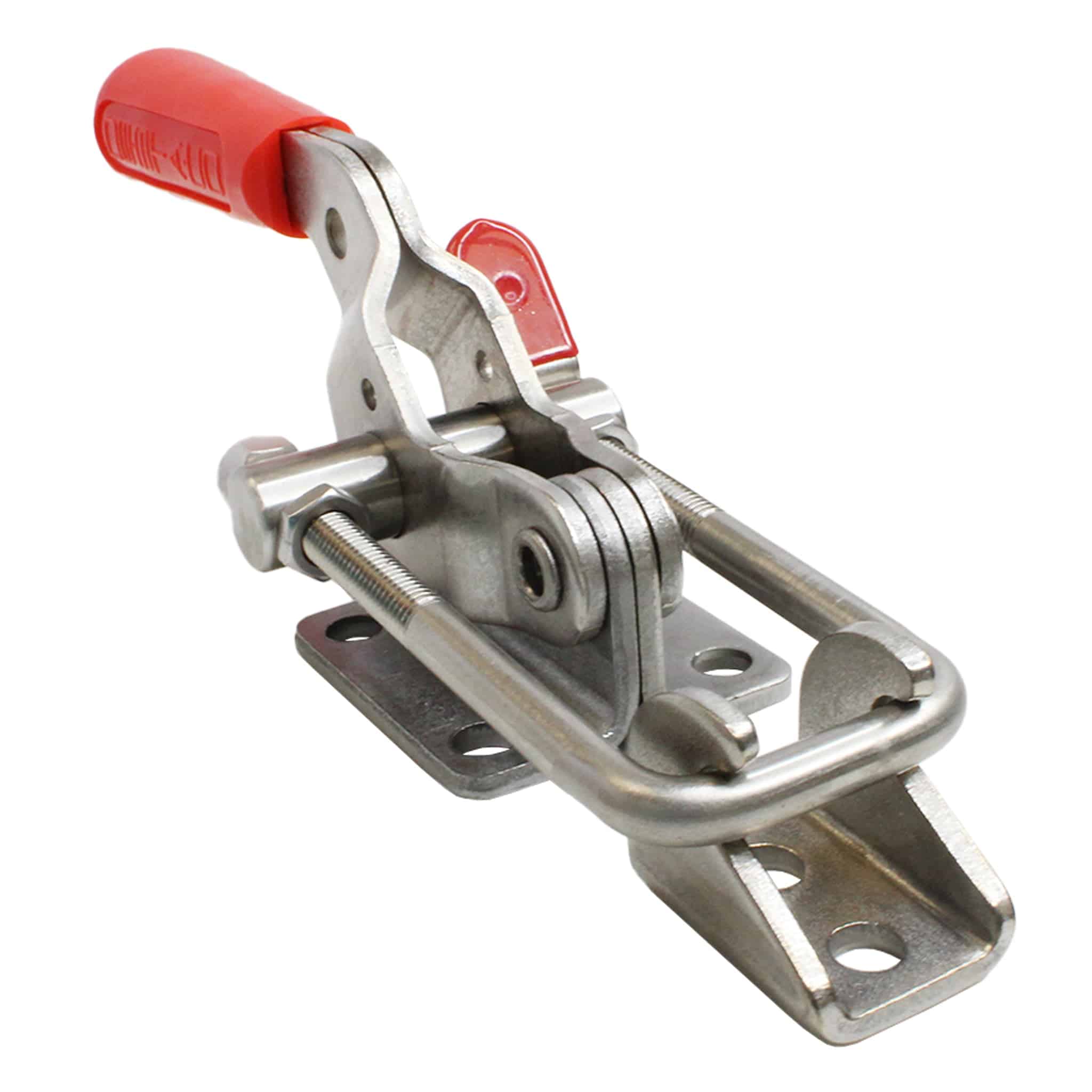

Destaco 341-SS Pull Action Latch Clamp
Product Details
In Stock: 35
Couldn't load pickup availability
Description
341-SS Pull Action Latch Clamp
• Model No.: 341-SS
• Maximum Holding Capacity (N): 8,900
• Maximum Holding Capacity (lbsf): 2,000
• Drawing Movement (mm): 63.5
• Drawing Movement (in): 3.080
• Hook Adjustable Range (mm): 24.6
• Max Hook Adjustment (in): 0.760
• Ef:Af Exerting Force: Applied Force ((pushing/pulling)): 29:1
• Standard Material: Stainless Steel
• Toggle Lock Plus: No
• Base Mounting Style: Flange
• Drawing Movement (mm): 63.5
• Hook Type: U-Hook (Horizontal)
• Latch Plate: 341905
• Latch Plate Supplied?: Yes
• Replacement Hook Assembly: 341915
• Product Type: Standard
• EDP No.: 53419
• Thread: M8x1.25
• Overall Hook Length: 4.31INCH.
• Weight: 0.65kg (1.43lb)
Additional Features:
• Stainless Steel
• Supplied with threaded U-hooks for easy adjustment
• Latch plate included
• Patented Thumb Control Lever provides one-handed operation
• Optional hook lengths available
Specifications
Hook Type :
U-Hook (Horizontal)Weight (lb) :
1.43Product Type :
Pull-Action Latch ClampsPublishedDate :
1673985081000Product Series :
323/331/341DistributorGroup :
Workholding (Manual, Power and Hydraulic Clamps)Product Function :
ClampingToggle Lock Plus :
NoLatch Plate 341905 :
341905Standard Material :
Stainless SteelBase Mounting Style :
FlangeLatch Plate Supplied :
YesHook Adjustable Range :
24.6Max Hook Adjustment (in) :
0.76Replacement Hook Assembly :
341915Maximum Holding Capacity (lbf) :
2000.0Drawing Movement without Thumb Control (in) :
3.08Ef:Af Exerting Force: Applied Force ((pushing/pulling)) :
29:1Downloads
