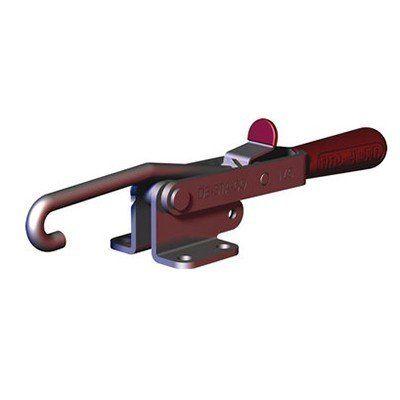

Features and Specification: 371 Pull Action Latch Clamp

• Model No.: 371
• Maximum Holding Capacity (N): 3,340
• Maximum Holding Capacity (lbsf): 750
• Drawing Movement (mm): 136.7
• Drawing Movement (in): 5.440
• Hook Adjustable Range (mm): 23.9
• Max Hook Adjustment (in): 0.810
• Ef:Af Exerting Force: Applied Force ((pushing/pulling)): 36:1
• Standard Material: Steel
• Toggle Lock Plus: No
• Base Mounting Style: Flange
• Drawing Movement (mm): 136.7
• Hook Type: J-Hook
• Replacement Hook Assembly: 371215
• Product Type: Standard
• EDP No.: 53710
• Drawing Movement: 5.38INCH
• Thread: M10x1.5
• Overall Hook Length: 7.64INCH
• Weight: 0.69 (kg) 1.52 (lb)

Additional Features:
• Supplied with threaded J-Hook for easy adjustment
• Patented Thumb Control Lever provides one-handed operation
• Longer hook lengths available
