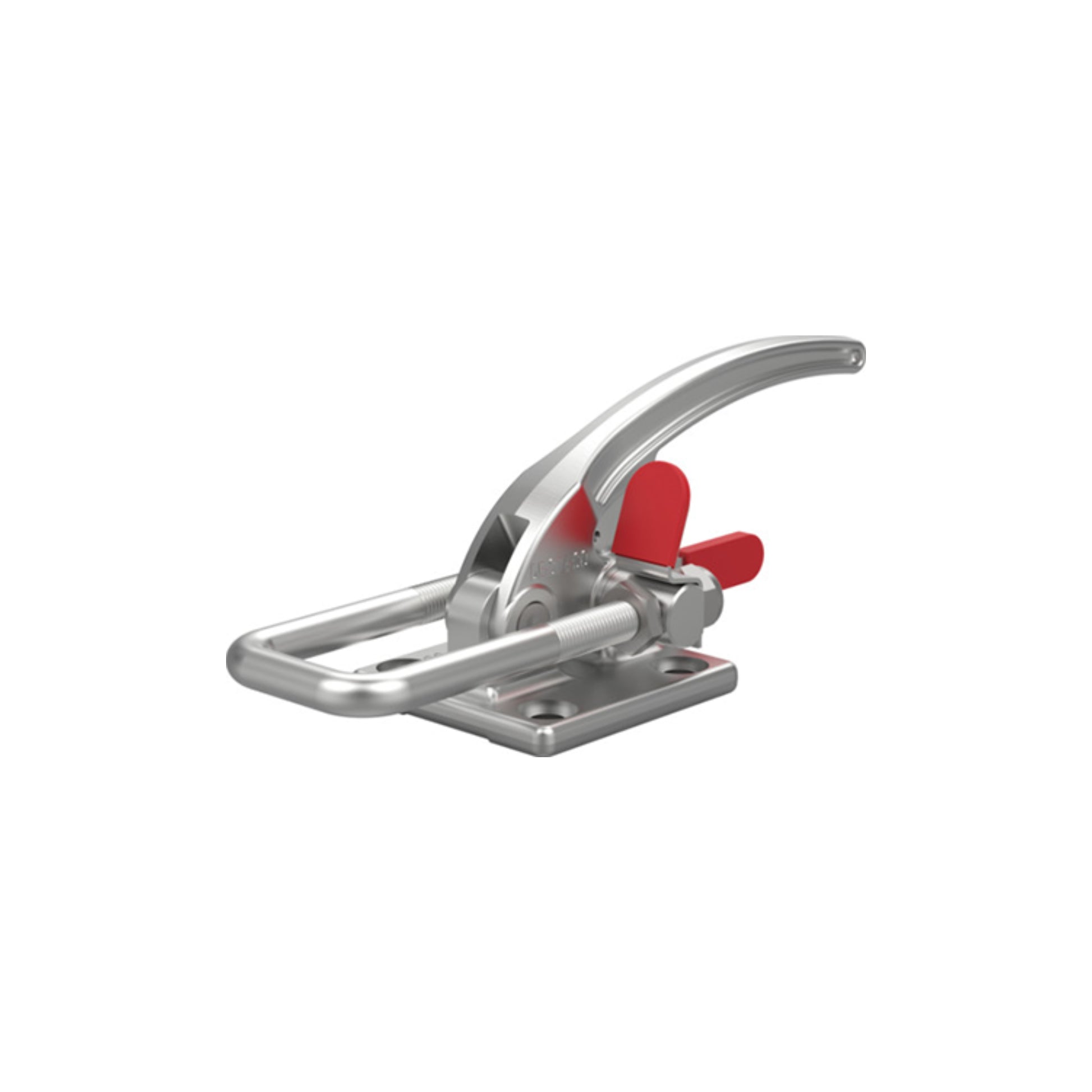

Destaco 385-RSS | Pull Action, Manual Latch Clamp

The Destaco 385-RSS Pull Action, Manual Latch Clamp is a heavy duty device designed to provide superior clamping performance with a 44:1 exerting to applied force ratio. Equipped with patented thumb control lever, it allows for one-handed operation. The device is supplied with threaded U-hook for easy adjustment and features Toggle Lock Plus for added protection and stability. Optional latch plates and hook lengths are available for added convenience. The device is made with high-quality stainless steel and has a maximum holding capacity of 7500 lbf.

Product Details:
Heavy duty
Supplied with threaded U-Hook for easy adjustment
With Toggle Lock Plus
Patented Thumb Control Lever provides one-handed operation
Optional latch plates and hook lengths available

Base Mounting Style: Flange
Distributor Group: Workholding (Manual, Power and Hydraulic Clamps)
Drawing Movement without Thumb Control (in): 2.31
Ef:Af Exerting Force: Applied Force ((pushing/pulling)): 44:1
Hook Adjustable Range: 36.1
Hook Type: U-Hook (Horizontal)
Latch Plate Supplied?: No
Latch Plate: 385902
Max Hook Adjustment (in): 1.07
Maximum Holding Capacity (lbf): 7500
Product Function: Clamping
Product Series: 385
Product Type: Heavy Duty
Product Type: Pull-Action Latch Clamps
Replacement Hook Assembly: 385915
Standard Material: Stainless Steel
Toggle Lock Plus: Yes
Weight (lb): 3.4
