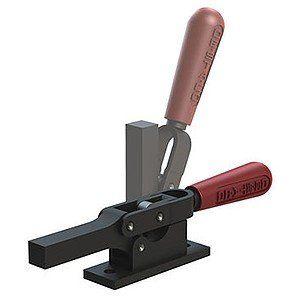

Destaco 5310-R Horizontal Hold-Down Toggle Locking Clamp

  • Destaco 5310-R Horizontal Hold-Down Toggle Locking Clamp

Product Details

SKU
5310-R
Vendor
Destaco
Inventory

In Stock: 69

$140.87 USD
$133.43 USD MSRP $140.87 USD

Description

Features and Specifications: 5310-R Heavy Duty Horizontal Hold-Down Toggle Locking Clamp

  • High strength forged alloy steel clamping arm
  • Hardened steel pivot pins and bushings for long life
  • Black oxide finish
  • Part No.: 5310-R
  • Maxmum Holding Capacity (N): 5,780
  • Maximum Holding Capacity (lbsf): 1,300
  • Opening Angle (deg): 90
  • Height Under Clamp Arm (mm): 25.4
  • Height Under Clamp Arm (in): 1.000
  • Clamp Bar Opening (+10°) (degrees): 90
  • Handle Opening (+10°): 69
  • Available: Yes
  • Standard Material: Steel
  • Toggle Lock Plus: Yes
  • Accomodates Workpiece Variation: No
  • Base Mounting Style: Flange
  • Clamp Arm Style: Solid Bar
  • Handle: Horizonal
  • Service Environment: Harsh/Dirty
  • Application - Welding: Excellent/High
  • Application - Assembly: Excellent/High
  • Application - Checking Fixtures: Fair/Medium
  • Application - Machining: Poor/Low
  • Application - Wood-Working: Poor/Low
  • Application - Closures: Poor/Low
  • Application - Food Processing: Not Recommended
  • Duty Cycle: 3
  • Product Type: Heavy Duty
  • Weight (kg): 1.30
  • Weight (lb): 2.87

Specifications

Handle :

Horizonal

Duty Cycle :

3

Weight (lb) :

2.87

Product Type :

Heavy Duty

PublishedDate :

1676898367000

Product Series :

5000

Clamp Arm Style :

Solid Bar

DistributorGroup :

Workholding (Manual, Power and Hydraulic Clamps)

Product Function :

Clamping

Toggle Lock Plus :

Yes

Standard Material :

Steel

Base Mounting Style :

Flange

Opening Angle (deg) :

90

Service Environment :

Harsh/Dirty

Application - Welding :

Excellent/High

Clamp Arm Length (in) :

3.63

Application - Assembly :

Excellent/High

Application - Closures :

Poor/Low

Handle Opening (+10°) :

69

Application - Machining :

Poor/Low

Application - Wood-Working :

Poor/Low

Height Under Clamp Arm (in) :

1

Application - Food Processing :

Not Recommended

Maximum Holding Capacity (lbf) :

1300

Accomodates Workpiece Variation :

No

Application - Checking Fixtures :

Fair/Medium

Clamp Bar Opening (+10°) (degrees) :

90
