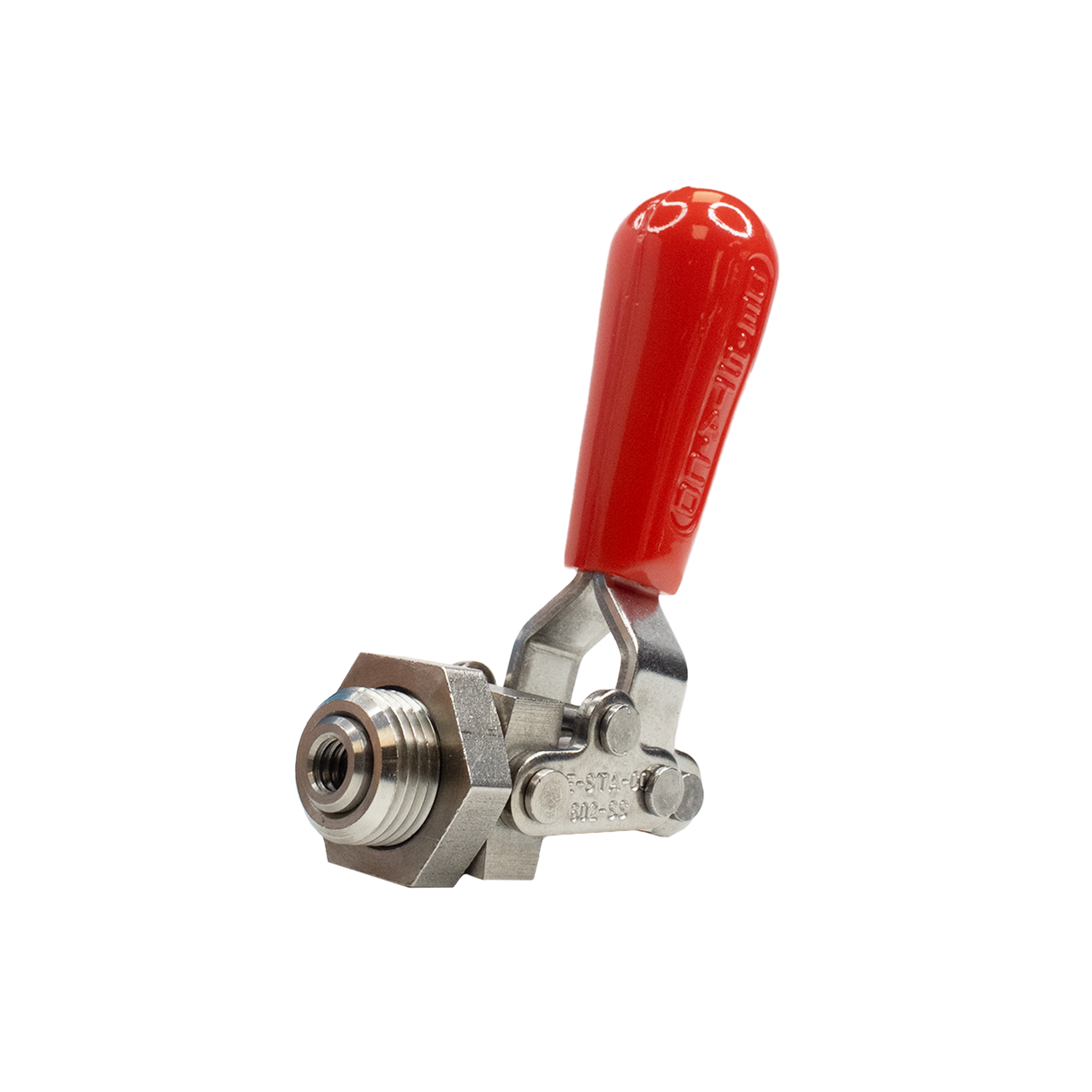

Destaco 602-SS Straight Line Action Clamp

  • Destaco 602-SS Straight Line Action Clamp

Product Details

SKU
602-SS
Vendor
Destaco
Inventory

In Stock: 22

$78.44 USD
MSRP $78.44 USD

Description

Features and Specifications: 602-SS Straight Line Action Clamp

  • Through-hole mounted straight line action clamp
  • Versatile and compact
  • Locks in both extended and retracted position
  • Stainless steel
  • Ergonomic handle grip supplied
  • Maximum Holding Capacity (N) 900
  • Maximum Holding Capacity (lbsf) 200
  • Plunger Travel (mm) 19.1 / Plunger Travel (in) 0.750
  • Plunger Height (mm) 19.1 / Plunger Height (in) 0.750
  • Ef:Af Exerting Force: Applied Force ((pushing/pulling)) 31:1/28:1
  • Plunger Travel (mm) 19.0
  • Plunger Thread 1/4-20
  • Available Yes
  • Standard Material Stainless Steel
  • Toggle Lock Plus No
  • Plunger Round
  • Spindle (Recommended) 202943
  • Spindle Included? No
  • Preferred Market NA/SA
  • Mounting Nut (Supplied) 602905
  • Product Type Standard
  • 0.05kg [0.12lb]
  • Plunger Travel: 0.75"
  • Plunger Thread: 1/4-20

Specifications

Plunger :

Round

Weight (lb) :

0.11

Product Type :

Straight Line Action Clamps

Plunger Thread :

1/4-20

Product Series :

602/604/624

Spindle Included :

No

DistributorGroup :

Workholding (Manual, Power and Hydraulic Clamps)

Product Function :

Clamping

Toggle Lock Plus :

No

Standard Material :

Stainless Steel

Base Mounting Style :

Flange

Plunger Height (in) :

0.75

Plunger Travel (in) :

0.75

Spindle (Recommended) :

202943

Mounting Nut (Supplied) :

602905

Maximum Holding Capacity (lbf) :

200

Ef:Af Exerting Force: Applied Force ((pushing/pulling)) :

31:1/28:1
