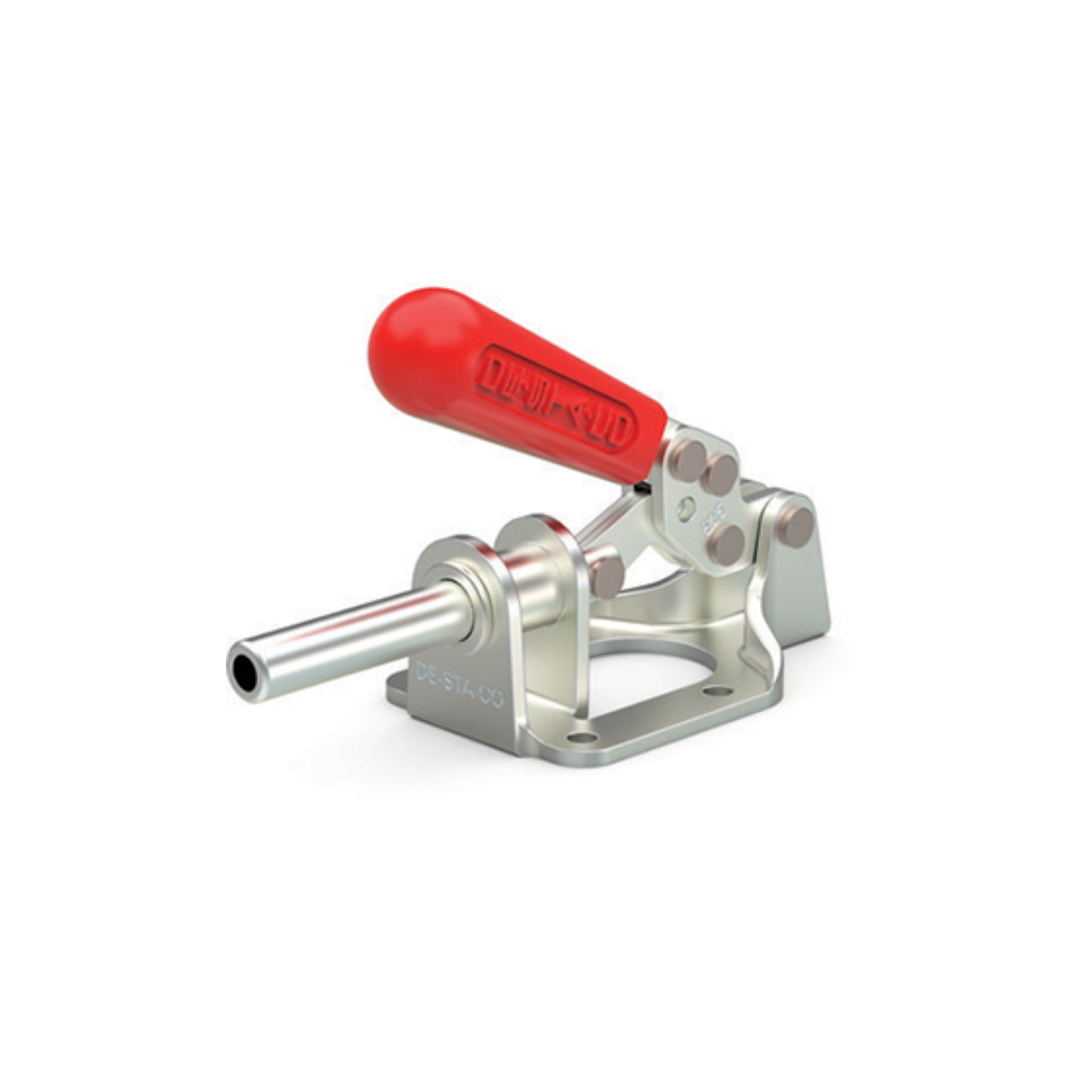

Destaco 605-M | Straight Line Action Clamp

The Destaco 605-M Straight Line Action Clamp is a reliable and robust manual clamping solution with a maximum holding capacity of 1330 N (300 lbf) the 605-M is built to last and out perform. Its round-plunger design features a 45:1 exerting to applied force ratio (pushing/pulling) and it has a plunger travel of 31.8mm. The 605-M is corrosion resistant and made from premium steel for strength and durability. With a flange mounting style and an optional 207203-M spindle, the 605-M is the ideal manual clamp for the most demanding applications.

Product Details:
Base Mounting Style: Flange
Base Item: 605-M
Distributor Group: Workholding (Manual, Power and Hydraulic Clamps)
Ef:Af Exerting Force: Applied Force ((pushing/pulling)): 45:1/40:1
Imperial or Metric Product: Metric
Keywords: 605 Standard
Maximum Holding Capacity (lbf): 300.0
Maximum Holding Capacity (N): 1330.0
Plunger Height (in): 0.97
Plunger Height (mm): 24.6
Plunger Thread: M8
Plunger Travel (in): 1.25
Plunger Travel (mm): 31.8
Plunger: Round
Product Family: Manual Clamping
Product Function: Clamping
Product Series: 605
SKU: 605-M
Spindle (Recommended): 207203-M
Spindle Included: No
Standard Material: Steel
Toggle Lock Plus: No
Weight (kg): 0.31
Weight (lb): 0.68
