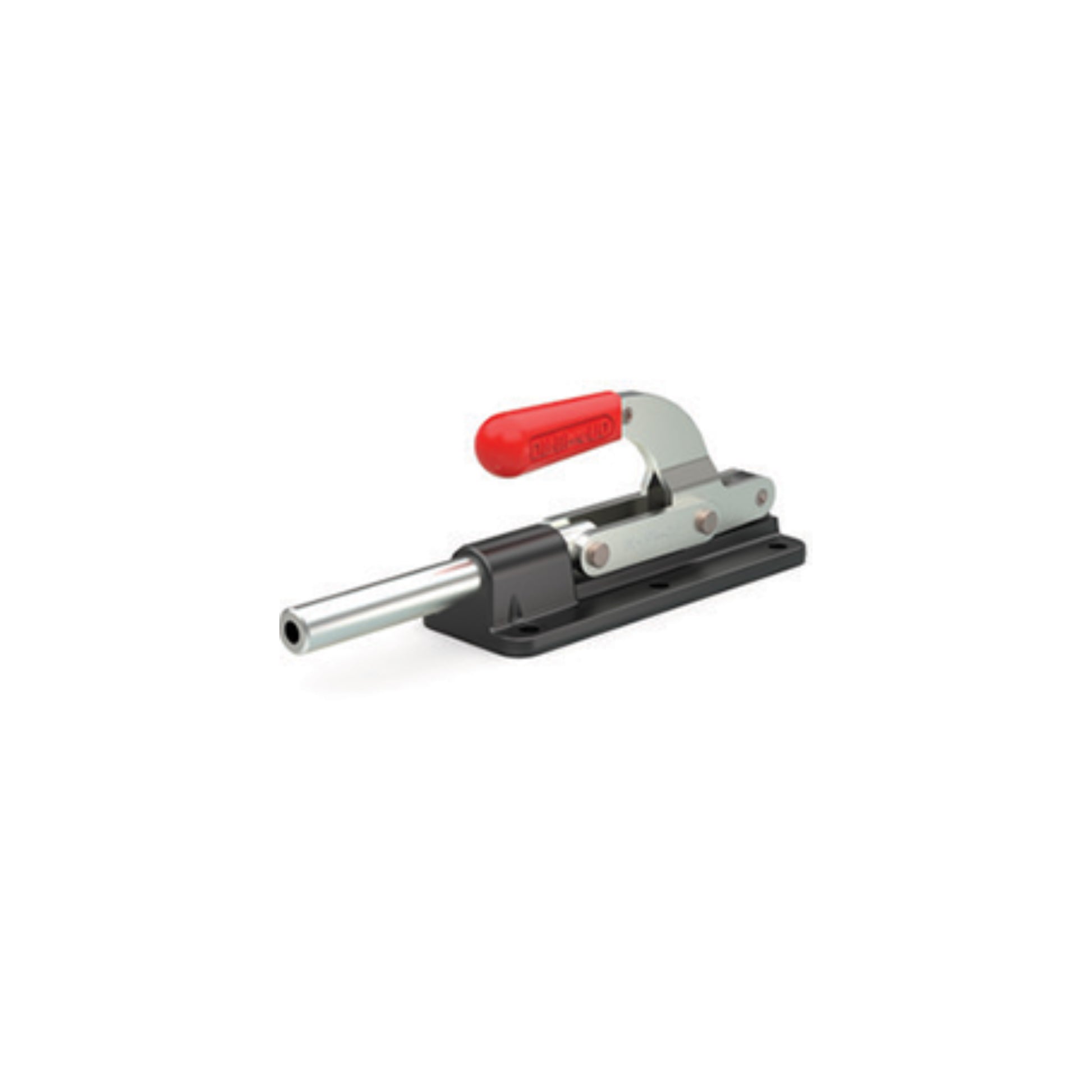

Destaco 640 | Straight Line Action Clamp

The Destaco 640 Straight Line Action Clamp offers an impressive 35:1 pushing and pulling ratio with a maximum holding capacity of 7500 lbf. This clamp is easy to install and has a plunger travel of 4 inches, making it perfect for use in many applications such as bonding, welding, and assembly operations. It is designed for use with the 220203 spindle (sold separately), and its 1/2-13 plunger thread allows it to be securely mounted in place without coming loose. This clamps is made from durable steel for reliable ongoing performance,

Product Details:
Base Mounting Style: Flange
Base Item: 640
Distributor Group: Workholding (Manual, Power and Hydraulic Clamps)
Ef:Af Exerting Force: Applied Force ((pushing/pulling)): 35:1
Imperial or Metric Product: Imperial
Maximum Holding Capacity (lbf): 7500
Maximum Holding Capacity (N): 33400
Plunger Height (in): 1.25
Plunger Height (mm): 31.8
Plunger Thread: 1/2-13
Plunger Travel (in): 4
Plunger Travel (mm): 101.6
Plunger: Round
Product Family: Manual Clamping
Product Function: Clamping
Product Series: 640
Product Type: Standard
SKU: 640
Spindle (Recommended): 220203
Spindle Included: No
Standard Material: Steel
Toggle Lock Plus: No
Weight (kg): 3.08
Weight (lb): 6.79
