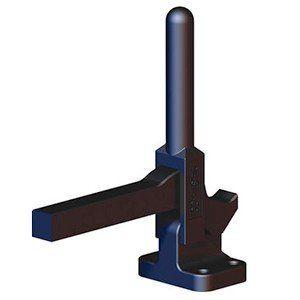

Destaco 7-101 Vertical Hold-Down Cam action Clamp

  • Destaco 7-101 Vertical Hold-Down Cam action Clamp

Product Details

SKU
7-101
Vendor
Destaco
Inventory

In Stock: 65

Regular price $136.39 USD
Sale price Regular price $129.82 USD MSRP Unit price $136.39 USD

Description

7-101 Vertical Hold-Down Cam Action Clamp

•Model No.: 7-101
•Maxmum Holding Capacity (N): 2,110
•Maximum Holding Capacity (lbsf): 475
•Clamp Arm Length (mm): 79.2
•Clamp Arm Length (in): 3.120
•Height Under Clamp Arm (mm): 36.6
•Height Under Clamp Arm (in): 1.440
•Duty Cycle: 3
•Product Type: Cam Action
•Arm Opening: 80°
•Weight: 0.45kg (1.0lbs)


Addtional Features:

•Cam action accommodates variable workpiece thickness
•Heavy duty construction
•Solid clamp arm may be modified to suit application requirements

Applications: Welding: Excellent/High, Assembly: Excellent/High, Checking Fixtures: Poor/Low, Machining: Poor/Low, Wood-Working: Poor/Low, Closures: Poor/Low, Food Processing: Not Recommended

Specifications

Handle :

Vertical

Duty Cycle :

3

Weight (lb) :

1.0

Product Type :

Cam Action

Product Series :

7-58,59,60,101

PublishedDate :

1716556625000

Clamp Arm Style :

Solid Bar

DistributorGroup :

Workholding (Manual, Power and Hydraulic Clamps)

Product Function :

Clamping

Toggle Lock Plus :

No

Service Environment :

Normal

Application - Welding :

Excellent/High

Clamp Arm Length (in) :

3.12

Application - Assembly :

Excellent/High

Application - Closures :

Poor/Low

Application - Machining :

Poor/Low

Application - Wood-Working :

Poor/Low

Height Under Clamp Arm (in) :

1.44

Application - Food Processing :

Not Recommended

Maximum Holding Capacity (lbf) :

475.0

Accomodates Workpiece Variation :

No

Application - Checking Fixtures :

Poor/Low
