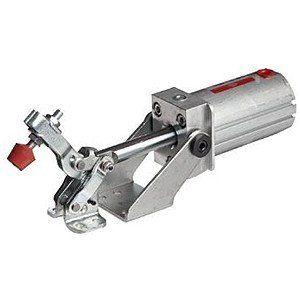

Destaco 802-U Light-Duty Pneumatic Hold-Down Clamp

  • Destaco 802-U Light-Duty Pneumatic Hold-Down Clamp

Product Details

SKU
802-U
Vendor
Destaco
Inventory

In Stock: 3

$164.32 USD
$157.94 USD MSRP $164.32 USD

Description

Application: Welding: Fair/Medium, Assembly: Excellent/High

Additional Features:

• Pneumatic cylinder features built in flow control for smooth operation
• Magnetic ring piston for position sensing
• Accommodating Sensors: T-slot (8EA-109-1) and/or round (810169)
• Purpose: assembly and light duty welding
• Pneumatic manual toggle clamp
• Ports: 802-U has 1/8NPT ports
• Ports: 802-UE has G-1/8 ports
• Replacement Clamp Assembly: 802-U-LC

Specifications

Duty Cycle :

Poor/Low

Weight (lb) :

1.52

Product Type :

Pneumatic Toggle Clamp

Air Port size :

1/8 NPT

PublishedDate :

1715089920000

Product Series :

802

Clamp Arm Style :

u-bar

Flanged Washers :

215105

Spindle Included :

Yes

DistributorGroup :

Workholding (Manual, Power and Hydraulic Clamps)

Product Function :

Clamping

Spindle Assembly :

202208-M

Cylinder Bore (in) :

1.26

Exerting Force (lbf) :

200.0

Replacement Seal Kit :

802550-20-1-00

Application - Welding :

Fair/Medium

Clamp Arm Length (in) :

1.73

Operating Temperature :

-10° to 90°C (-14° to 194° F)

Air Consumption (ft³) :

0.0006

Application - Assembly :

Excellent/High

exerting_force_lbf_english :

200.0

Height Under Clamp Arm (in) :

1.06

Maximum Holding Capacity (lbf) :

200.0
