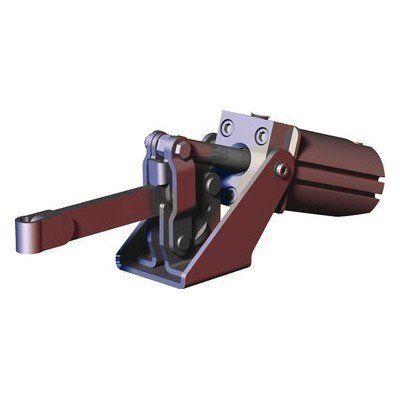

Destaco 807-S Light-Duty Pneumatic Hold-Down Clamp

  • Destaco 807-S Light-Duty Pneumatic Hold-Down Clamp

Product Details

SKU
807-S
Vendor
Destaco
Inventory

In Stock: 29

Regular price $174.48 USD
Sale price Regular price $168.54 USD MSRP Unit price $174.48 USD

Description

Features and Specifications: 807-S Light-Duty Pneumatic Hold-Down Clamp

Maximum Holding Capacity (N): 2,220
Maximum Holding Capacity (lbsf): 500
Clamp Arm Length (mm): 80.0
Clamp Arm Length (in): 3.130
Height Under Clamp Arm (mm): 35.0
Height Under Clamp Arm (in): 1.380
Cylinder Bore (mm): 32
Cylinder Bore (in): 1.26
Port Size: 1/8 NPT
Clamp Arm Style: Solid
Application - Welding: Fair/Medium
Application - Assembly: Excellent/High
Duty Cycle: Fair/Medium
Operating Temperature: -10° to 90°C (-14° to 194° F)
Product Type: Pneumatic Toggle Clamp
Exerting Force (N): 2412
Exerting Force (lbf): 540
Air Consumption (dm²): 0.42
Air Consumption (ft²): 0.015
Replacement Seal Kit: 802450-32-1-00
Weight: 0.75kg [1.66lb]
Bar Opens: 92°

Additional Notes:
Sensor ready for round or T-slot sensors.
Built-in flow restriction eliminates need for external flow controls
Pneumatic version of 207 manual toggle clamp
Supplied with bolt retainer
Replacement Clamp Assembly: 807-S-LC
Pneumatic version of models 207-U and 207-S manual clamp
Pneumatic cylinder features built in flow control for smooth operation and magnetic ring piston for position sensing
Accommodates either T-slot (8EA-109-1) or round (810169) sensors

Specifications

Duty Cycle :

Fair/Medium

Weight (lb) :

1.66

Product Type :

Pneumatic Toggle Clamp

Air Port size :

1/8 NPT

Bolt Retainer :

207105

Port Standard :

Ports

PublishedDate :

1675434840000

Product Series :

807

Clamp Arm Style :

solid

DistributorGroup :

Workholding (Manual, Power and Hydraulic Clamps)

Product Function :

Clamping

Cylinder Bore (in) :

1.26

Exerting Force (lbf) :

540.0

Replacement Seal Kit :

802450-32-1-00

Application - Welding :

Fair/Medium

Clamp Arm Length (in) :

3.13

Operating Temperature :

-10° to 90°C (-14° to 194° F)

Air Consumption (ft³) :

0.015

Application - Assembly :

Excellent/High

Height Under Clamp Arm (in) :

1.38

Maximum Holding Capacity (lbf) :

500.0
