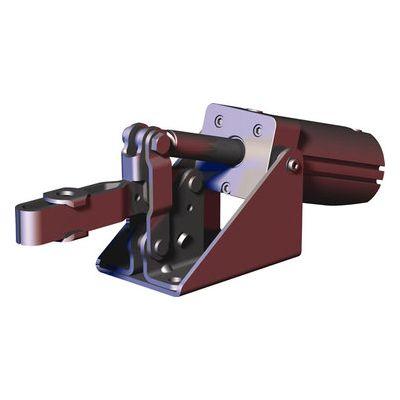

Destaco 810-U Pneumatic Hold Down Clamp
Product Details
In Stock: 4
Couldn't load pickup availability
Description
810-U Pneumatic Hold Down Clamp
• Sensor ready for round or T-slot sensors
• Built-in flow restriction eliminates need for external flow controls
• Pneumatic version of 210 manual toggle clamp
• Replacement Clamp Assembly: 810-U-LC
• Maximum Holding Capacity (N): 2,670
• Maximum Holding Capacity (lbsf): 600
• Clamp Arm Length (mm): 90.6
• Clamp Arm Length (in): 3.570
• Height Under Clamp Arm (mm): 45.5
• Height Under Clamp Arm (in): 1.790
• Cylinder Bore (mm): 40
• Cylinder Bore (in): 1.57
• Port Size: 1/8 NPT
• Clamp Arm Style: u-bar
• Duty Cycle: Fair/Medium
• Operating Temperature: -10° to 90°C (-14° to 194° F)
• Product Type: Pneumatic Toggle Clamp
• Exerting Force (N): 3834
• Exerting Force (lbf): 856
• Air Consumption (dm²): 0.83
• Air Consumption (ft²): 0.029
• Replacement Seal Kit: 810450-40-1-00
• EDP No.: 58100
• Bar Opens: 95°
• Weight: 1.85kg [4.07lb]
Application: Welding: Fair/Medium, Assembly: Excellent/High
Specifications
Duty Cycle :
Fair/MediumWeight (lb) :
4.07Product Type :
Pneumatic Toggle ClampAir Port size :
1/8 NPTPublishedDate :
1715181028000Product Series :
810Clamp Arm Style :
u-barFlanged Washers :
235106DistributorGroup :
Workholding (Manual, Power and Hydraulic Clamps)Product Function :
ClampingCylinder Bore (in) :
1.57Exerting Force (lbf) :
856.0Replacement Seal Kit :
810450-40-1-00Application - Welding :
Fair/MediumClamp Arm Length (in) :
3.57Operating Temperature :
-10° to 90°C (-14° to 194° F)Air Consumption (ft³) :
0.029Application - Assembly :
Excellent/HighHeight Under Clamp Arm (in) :
1.79Maximum Holding Capacity (lbf) :
600.0Downloads
