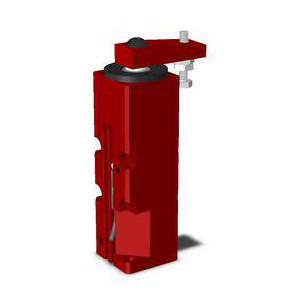

Destaco 8115 Block Style Pneumatic Swing Clamp
Product Details
Couldn't load pickup availability
Description
Destaco 8115 Block Style Pneumatic Swing Clamp
Sensor ready
Clamping arm and spindle included. Available with out clamping arm, specify -LA
Right hand swing
Stroke (mm): 21.5
Stroke (in): 0.850
Cylinder Bore (mm): 19.1
Cylinder Bore (in): 0.75
Clamping Force @ 5Bar[72Psi] (N): 80
Clamping Force @ 5Bar[72Psi] (lbf.): 18
Mount: Block style - side or top mount
Replacement Seal Kit: 801560
Swing Direction: RH
Air Port size: 10-32
Air Consumption (per double stroke at 5 bar) (dm²): 0.060
Air Consumption (per double stroke at 7 psi) (in²): 0.002
Stroke during rotation (mm): 11.8
Stroke during rotation (in): 0.47
Vertical clamp stroke (mm): 9.7
Vertical clamp stroke (in): 0.38
Sensor Ready: Yes
Series: 8100
EDP No.: 58115
Swing: RH
Arm Supplied: 801528
Spindle Supplied: 305203
Travel During Rotation: 11.8mm
Travel During Rotation: 0.466INCH
Vertical Clamp Stroke: 21.6mm
Vertical Clamp Stroke: 0.85INCH
Max. Arm Length: 2.25mm
Max. Arm Length: 57.2INCH
Weight: 0.31kg [0.68lb]
Specifications
Mount :
Block style - side or top mountStroke (in) :
0.85Weight (lb) :
0.68Sensor Ready :
YesAir Port size :
10-32PublishedDate :
1674743922000Product Series :
8100/8300Swing Direction :
RHDistributorGroup :
Workholding (Manual, Power and Hydraulic Clamps)Product Function :
ClampingCylinder Bore (in) :
0.75Replacement Seal Kit :
801560Vertical clamp stroke (in) :
0.38Stroke during rotation (in) :
0.47Clamping Force @ 5Bar[72Psi] (lbf.) :
18.0Air Consumption (per double stroke at 7 psi) (in³) :
