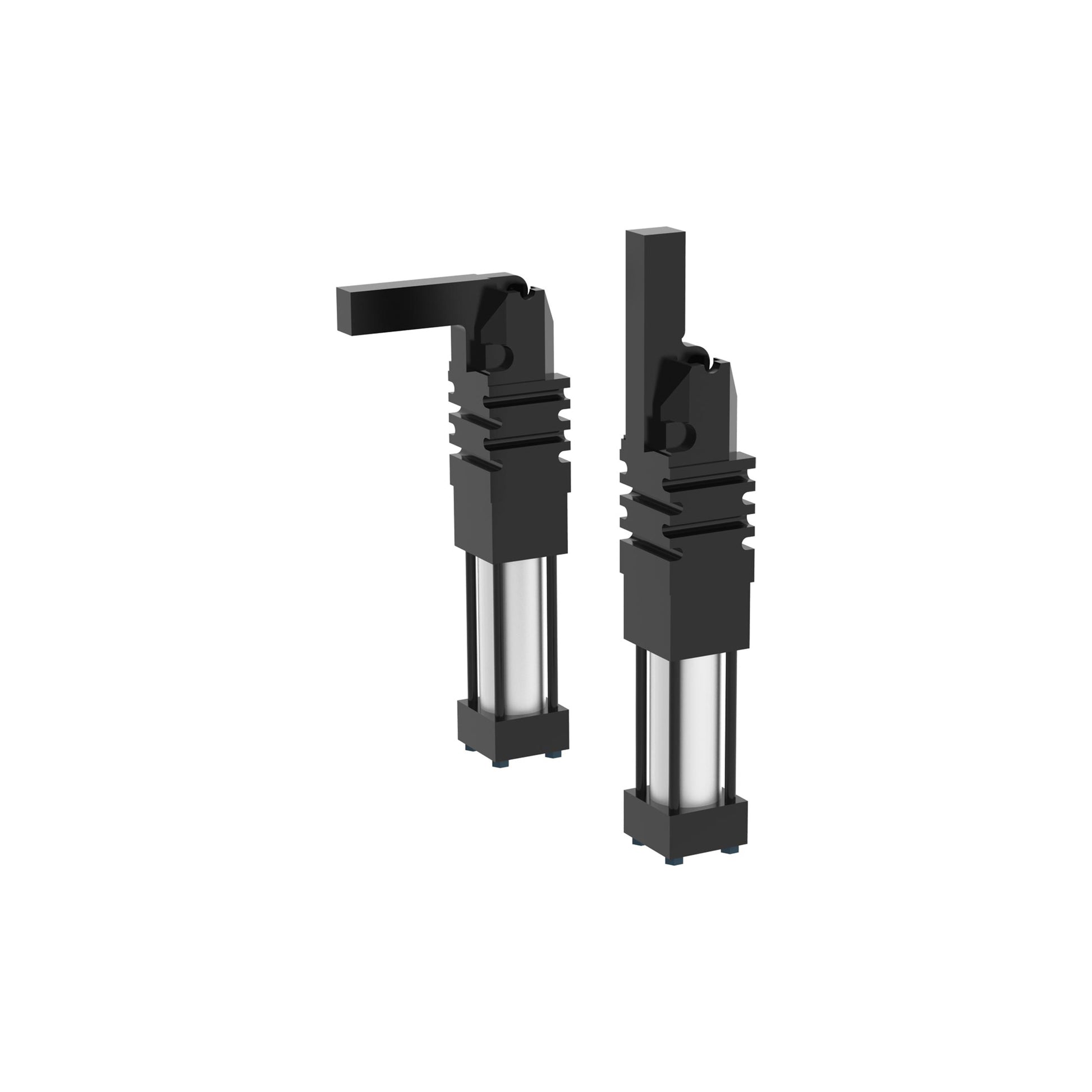

Destaco 871-2 | Light-Duty Pneumatic Clamp
Description
Destaco 871-2 | Light-Duty Pneumatic Clamping
The Destaco 871-2 Light-Duty Pneumatic Clamping provides a max holding torque of 192 ft-lbs and a clamp arm torque of 44ft-lbs at 5 Bar, this clamp is designed to meet the most demanding production requirements. The air consumption is 0.03ft³ per double stroke at 72 psi. It features a center clamp arm style with a 118-degree opening angle and an air port size G 1/8. The 871-2 is made of high-quality metal and weighs 6.6lbs, making it a reliable and lightweight addition to any workholding system.
Product Details:
Air Consumption per double stroke at 72 psi (ft³): 0.03
Air Consumption per double stroke at 72 psi (ft³): 0.03
Air Port size: G 1/8
Clamp Arm Style: Center
Clamping Arm Torque At 5 Bar (ft-lb): 44
Cylinder Bore (in): 1.5
Distributor Group: Workholding (Manual, Power and Hydraulic Clamps)
Holding Torque (Max) (ft-lb): 192
Opening Angle (deg): 118
Product Function: Clamping
Product Series: 870-2/871-2
Product Type: Power Clamp
Weight (lb): 6.6
Specifications
Weight (lb) :
6.6Product Type :
Power ClampAir Port size :
G 1/8Product Series :
870-2/871-2Clamp Arm Style :
CenterDistributorGroup :
Workholding (Manual, Power and Hydraulic Clamps)Product Function :
ClampingCylinder Bore (in) :
1.5Opening Angle (deg) :
118Holding Torque (Max) (ft-lb) :
192Clamping Arm Torque At 5 Bar (ft-lb) :
44Air Consumption per double stroke at 72 psi (ft³) :
0.03
