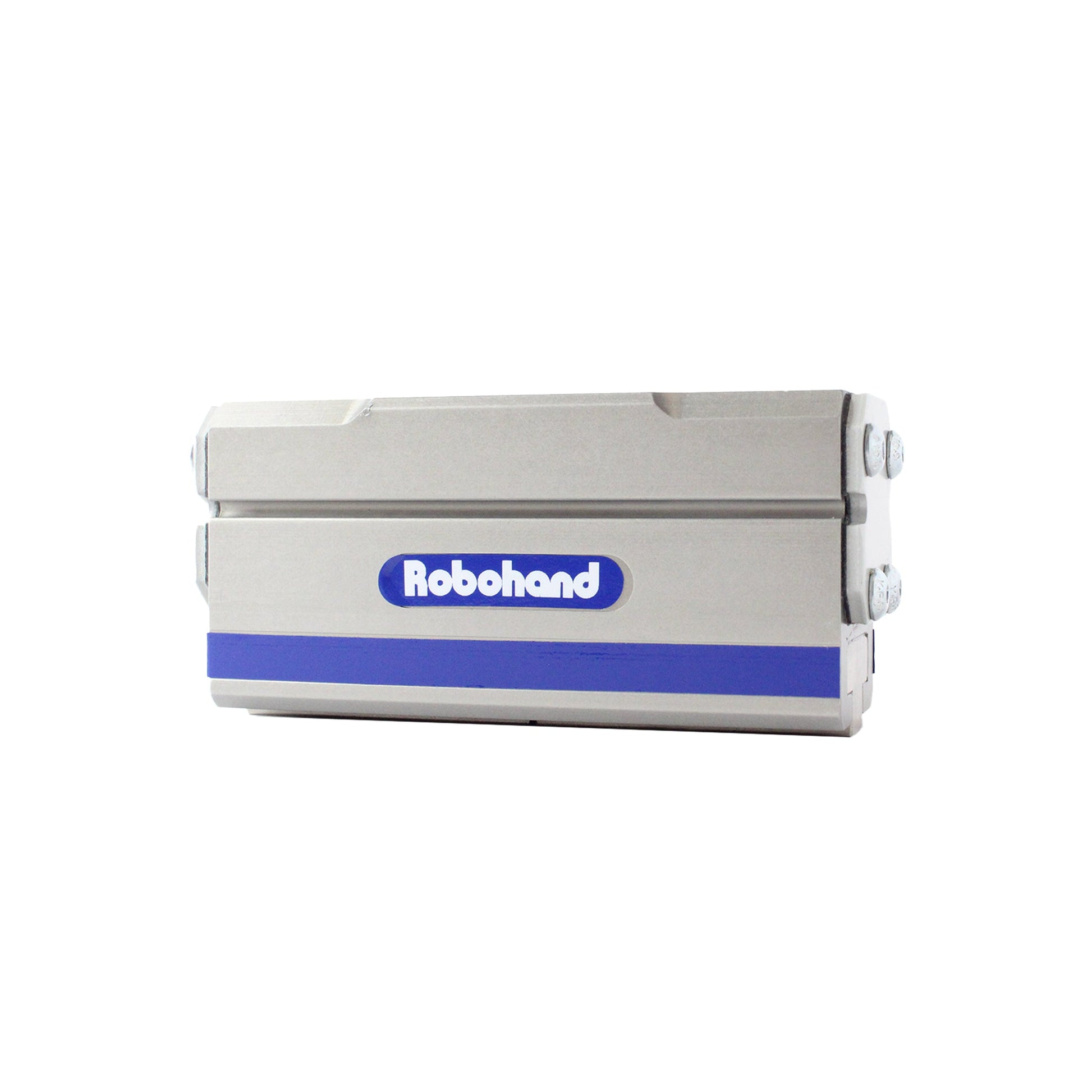

A low-maintenance shielded gripper ideal for machine builders and OEMs. Features fast operation, low profile and high grip force with strokes from 5 mm to 50 mm. Available in 20 models with popular size and stroke combinations.

Smooth rack and pinion operation
Low profile for constrained application space
Extended vertical jaw option kit available

 | Imperial or Metric Product  | Metric
 | Grip Force (N)  | 558
 | Grip Force (lbsf)  | 123
 | Stroke (mm)  | 30.0
 | Cylinder Bore (mm)  | 25
 | Cylinder Bore (in)  | 0.98
 | Actuation Speed (ms)  | 440
 | Pressure Range (bar)  | 40-100 psi
 | Temp Range Standard  | -35° to 80°C (-30° to 180°F)
 | Accuracy (±mm)  | 0.080
 | Repeatability (±mm)  | 0.080
 | Product Type  | Parallel Gripper
 | Direct Connect  | Yes
 | Optional Sensor  | Yes
 | Jaw Operation  | Synchronous
 | Spring Assist  | No
 | Weight (kg)  | 0.85
 | Weight (lb)  | 1.87
 | Product Series Description  | 2-Jaw Parallel Gripper
 | Product Function  | Gripping
 | Product Family  | Grippers
 | Product Group  | oem gripping solutions
 | Brand  | Robohand
 | Distributor Group  | Robohand Gripping Solutions
