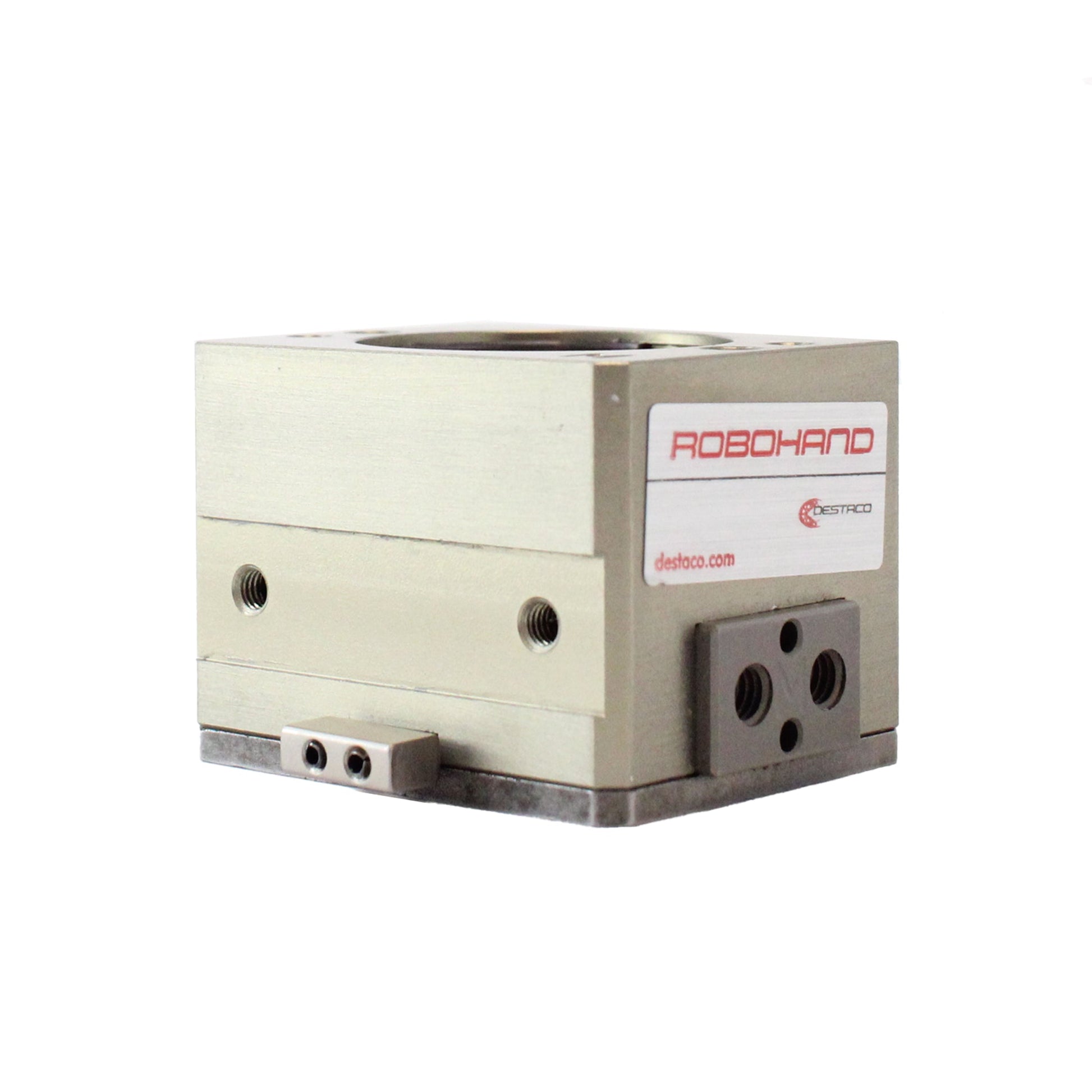

Robohand RP-11M | 2-Jaw double wedge parallel gripper
Product Details
In Stock: 11
Couldn't load pickup availability
Description
This style 2 jaw parallel gripper is the most widely used in the industry. Powered by our patented double wedge design this gripper offers a rugged design and supplies very high grip forces for its size. Each gripper is offered in 2 strokes lengths.
Patented Double Wedge Design for extreme high grip force to size ratio
Internally sealed for use in hostile environments
Superior accuracy and repeatability
 | Imperial or Metric Product | Metric
 | Grip Force (N) | 178
 | Grip Force (lbsf) | 40
 | Stroke (mm) | 6.4
 | Stroke (in) | 0.250
 | Cylinder Bore (mm) | 25.4
 | Cylinder Bore (in) | 1
 | Pressure Range (psi) | 40-100 psi
 | Temp Range Standard | -35° to 80°C (-30° to 180°F)
 | Temp Range Viton | -30° to 150°C (-20° to 300°F)
 | Actuation (Open/Closed) (Sec) | 0
 | Accuracy (±mm) | 0.050
 | Repeatability (±mm) | 0.030
 | Repeatability (±in) | 0.001
 | Maximum Finger Length (mm) | 64
 | Maximum Finger Length (in) | 2.52
 | Product Type | 2 Jaw Parallel
 | Special Feature | High Impact Force
 | Jaw Operation | Synchronous
 | Spring Assist | Optional
 | Weight (kg) | 0.11
 | Weight (lb) | 0.26
 | Product Series Description | 2-Jaw Parallel Gripper
 | Number of Jaws | 2
 | Product Function | Gripping
 | Product Family | Grippers
 | Product Group | Parallel Grippers
 | Brand | Robohand
 | Distributor Group | Robohand Gripping Solutions
