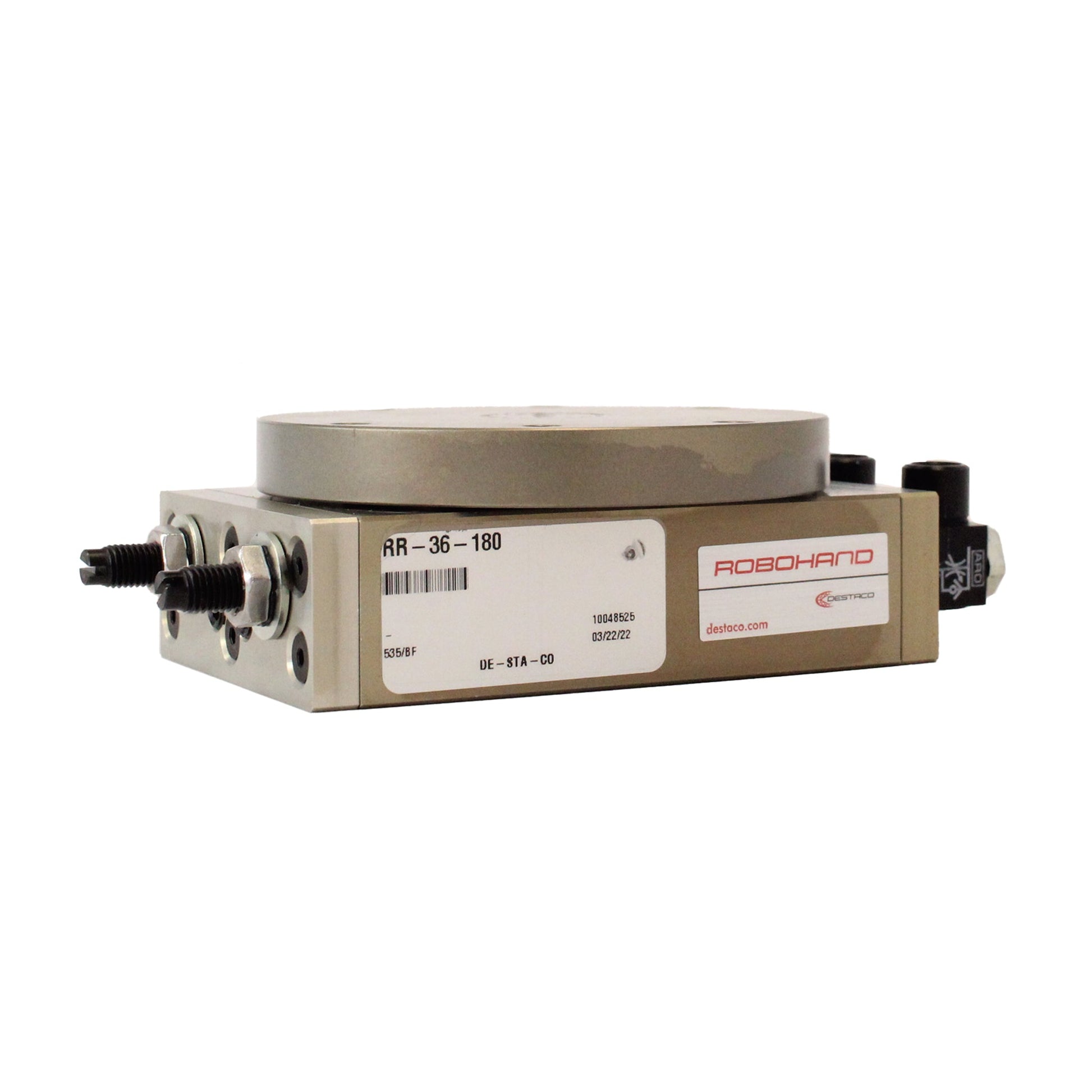

RR-36-180 Robohand Medium Duty Flange Output Rotary Actuator
Product Information
SKU
RR-36-180
Vendor
Robohand
Inventory
Product Summary
Robohand
Regular price
$1,250.00 USD
Sale price
Regular price
Market Price
Unit price
$1,250.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Product Details
This medium-duty rotary actuator is ideal for payloads up to 15 lbs [6.8Kg] in weight. They are available in standard 45, 90, 135 or 180 degrees of rotation. Optional mid-stop and rotary manifold available.
- Low profile and bearing supported turn table provides an extremely compact package for tight space applications
- Payload can be connected directly to the turn table. Eliminates the need for a bearing block
- Zero backlash, preloaded ball bearings, and slip fit dowel pins make this a very precise and repeatable rotary actuator
| Imperial or Metric Product | Imperial Version |
| Max Payload (lb) | 8 |
| Maximum Torque at 100psi/7bar (in-lb) | 65.00 |
| Cylinder Bore (in) | 1 |
| Displacement (in³) | 2.050 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Repeatability | ±0.02° |
| Max Payload Inertia With Shocks (lb-in-sec²) | 0.0414 |
| Max Torque Mid-Stroke (in-lbs) | 66 |
| Max Torque End-Stroke (in-lbs) | 32 |
| Max Rotation (Degrees) | 180 |
| Over Travel (Degrees) | 4° |
| Configuration | Flange |
| Product Type | Mid-Stop |
| Clean Room | 100000 |
| Special Feature | Manifold Option |
| Weight (lb) | 2.90 |
| Product Series Description | RR Actuator - Medium |
| Product Function | Rotary Positioning |
| Product Family | Rotaries |
| Product Group | rotary actuators |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
