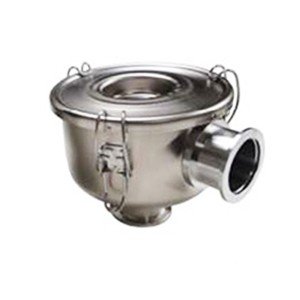

Solberg CSL-825-NW25EN CSL-Series Compact NW25 ISO Flange Vacuum Filter (nickel)

SKU#: CSL-825-NW25EN

Low quantity. Product may take longer to ship.

Vendor: Solberg

Media Filter Element: Polyester
Connection Inlet/Outlet: NW25 ISO Flange
Flow Rate (assembly): 25
Element Flow Rate: 25
Dimensions: Dim A (ht): 3.88" | Dim B (ht): 2.63" | Dim C (w): 3.75" | Dim D: 2.25"

ISO Flg Vacuum Filters, CSL Series (Electroless Nickel Finish, SS Fittings)
Compact Inlet "L" Style Vacuum Filters with ISO-NW Flanges
- ISO NW16 - NW40 Flange
- Standard polyester - 5 microns - 99% plus removal efficiency
- Continuous temperature minimum: -15° F (-26° C)
- Continuous temperature rating complete assembly maximum: 220°F (104°C)
- Vacuum Leak Rate: 1x10-5 mbar l/sec
- Vacuum Rating, medium vacuum service- Vacuum coating
- Prevent dry scroll tip seal migration
- Poly-crystalline silicone ingot production
- Solar cell lamination
- Trap condensable vapors
- Thin-film manufacturing
- Positive sealing O-ring seal system
- ISO flange stainless steel connections
- Rugged steel construction with powder coat finish
- Stainless steel torsion clips for durability
- Seamless drawn housings (Housing is ATEX compliant available)
- Large dirt hold capacity bucket, easy field cleaning (best results when mounted horizontally or inverted)

Options (upon request):
- various media available
- materials: black finish, electroless nickel finish, zinc nickel finish
- Stainless Steel
- Viton seals

Suggested Applications: Solar-grade Poly-crystalline silicone ingot Production - Thin-Film Manufacturing - Solar Cell Lamination - Leak Detection - Medical - Vacuum Coating - Vacuum Pump-Rotary Piston - Vacuum Pump-Rotary Vane - Scroll Dry Pump - Back-streaming-Protect the system from pump fluid or particulate migration - Prevent dry scroll tip seal migration - Trap condensable vapors - Mist removal for gear box venting - Laser technology

Note: Connection Data Dimension tolerance plus 1/4"
