Solberg CSL-851-K63B CSL Series ISO Flange Compact 63" Inlet Vacuum Filter

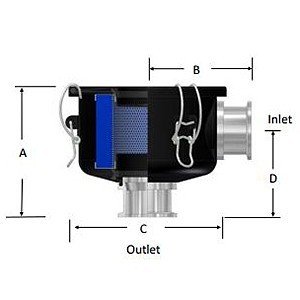

Solberg CSL-851-K63B CSL Series ISO Flange Compact 63" Inlet Vacuum Filter diagram
Solberg CSL-851-K63B CSL Series ISO Flange Compact 63" Inlet Vacuum Filter (zinc nickel plating view)
Solberg CSL-851-K63B CSL Series ISO Flange Compact 63" Inlet Vacuum Filter (electroless nickel finish view)
Solberg CSL-851-K63B CSL Series ISO Flange Compact 63" Inlet Vacuum Filter (black finish view)
Product images are for illustrative purposes only and may differ from the actual product.

Product Information

SKU
CSL-851-K63B
Vendor
Solberg

Product Summary

Solberg

Shipping calculated at checkout.
Product Details

Specifications for Solberg Compact Inlet "L" Style Vacuum Filters with ISO Flange
- Standard polyester - 5 microns - 99% plus removal efficiency
- Continuous temperature minimum: -15° F (-26° C)
- Continuous temperature rating complete assembly maximum: 220°F (104°C)
- Vacuum Leak Rate: 1x10-5 mbar l/sec
- Vacuum Rating, medium vacuum service- Vacuum coating
- Prevent dry scroll tip seal migration
- Poly-crystalline silicone ingot production
- Solar cell lamination
- Trap condensable vapors
- Thin-film manufacturing
- Positive sealing O-ring seal system
- ISO flange stainless steel connections
- Rugged steel construction with powder coat finish
- Stainless steel torsion clips for durability
- Seamless drawn housings (Housing is ATEX compliant available)
- Large dirt hold capacity bucket, easy field cleaning (best results when mounted horizontally or inverted)

Options (upon request):
- various media available
- materials: black finish, electroless nickel finish, zinc nickel finish
- Stainless Steel
- Viton seals

Suggested Applications: Solar-grade Poly-crystalline silicone ingot Production - Thin-Film Manufacturing - Solar Cell Lamination - Leak Detection - Medical - Vacuum Coating - Vacuum Pump-Rotary Piston - Vacuum Pump-Rotary Vane - Scroll Dry Pump - Back-streaming-Protect the system from pump fluid or particulate migration - Prevent dry scroll tip seal migration - Trap condensable vapors - Mist removal for gear box venting - Laser technology

Note: Connection Data Dimension tolerance plus 1/4"
